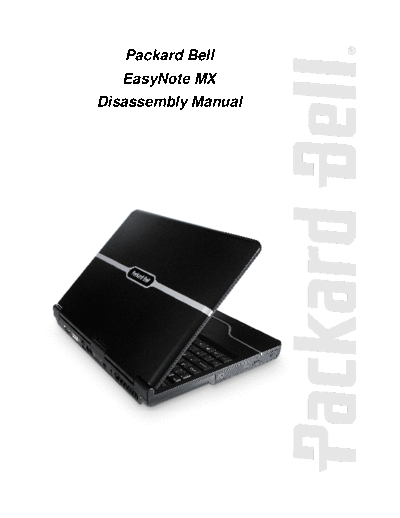

   Packard Bell
   EasyNote MX
Disassembly Manual
11111                                                                                                                                                      1



Table of Contents
Overview ................................................................................................................................................ 2
Technician Notes .................................................................................................................................... 2
Disassembly ........................................................................................................................................... 2
Reassembly............................................................................................................................................ 2
Required Tools ....................................................................................................................................... 2
Hazardous Voltage ................................................................................................................................. 3
Avoid Electrostatic Discharge.................................................................................................................. 3
Power Supply Unit .................................................................................................................................. 3
Battery.................................................................................................................................................... 4
Hard Disk Drive....................................................................................................................................... 4
Optical Disk Drive ................................................................................................................................... 5
WLAN Card ............................................................................................................................................ 5
Memory .................................................................................................................................................. 6
Processor ............................................................................................................................................... 7
Keyboard ................................................................................................................................................ 8
LCD Screen Assembly ............................................................................................................................ 9
Main Board ............................................................................................................................................11
Modem ..................................................................................................................................................12
Bluetooth (Optional) ...............................................................................................................................13
Touchpad...............................................................................................................................................13
Speakers ...............................................................................................................................................14
Subwoofer (Optional) .............................................................................................................................14
LCD Panel .............................................................................................................................................15
Inverter Board........................................................................................................................................16
Webcam ................................................................................................................................................16
Webcam Microphone/USB Cable ...........................................................................................................17
WLAN Antenna ......................................................................................................................................17
Notice ....................................................................................................................................................18




                                    Packard Bell EasyNote MX Disassembly Manual
                                                                                                           2



Overview
This document contains step-by-step disassembly instructions for the Packard Bell EasyNote MX. The
instructions are illustrated where necessary with images of the part that is being removed or
disassembled.

Packard Bell reserves the right to make changes to the EasyNote MX without notice.


Technician Notes
Only technicians authorized by Packard Bell B.V. should attempt to repair this equipment. All
troubleshooting and repair procedures are detailed to allow only subassembly/module level repair.
Because of the complexity of the individual boards and subassemblies, no one should attempt to make
repairs at the component level or to make modifications to any printed wiring board. Improper repairs can
create a safety hazard. Any indication of component replacement or printed wiring board modifications
may void any warranty or exchange allowances.


Disassembly
When disassembling the system unit, follow these general rules:

          Turn off the power using the power button.
          Disconnect the adapter.
          Remove any SD/MMC card, ExpressCard or dummy card from the device.
          Do not disassemble the system into parts that are smaller than those specified in the
          instructions.
          Label all removed connectors; note where the connector goes and in what position it was
          installed.


Reassembly
Reassembly is the reverse of the disassembly process. Use care to ensure that all cables and screws are
returned to their proper positions. Check that no tools or any loose parts have been left inside the casing.
Check that everything is properly installed and tightened.


Required Tools
All disassembly procedures can be performed using the following tools:

          Small Phillips and flat-blade screwdriver.




                         Packard Bell EasyNote MX Disassembly Manual
                                                                                                               3



                                                              WARNING
Hazardous Voltage                                             Ensure that the notebook is disconnected
There is hazardous voltage present inside the                 from its power source and from all
notebook when it is connected to an AC supply, even           telecommunications links, networks, or
when the notebook's power switch is off. Exposure to          modem lines whenever the casing cover is
hazardous voltage could cause personal injury. To             removed. Do not operate the notebook with
avoid risk of injury, contact an Authorized Service           the cover removed.
Provider for proper (un)installation of optional
hardware devices.                                             AVERTISSEMENT
                                                              Assurez-vous que le syst
