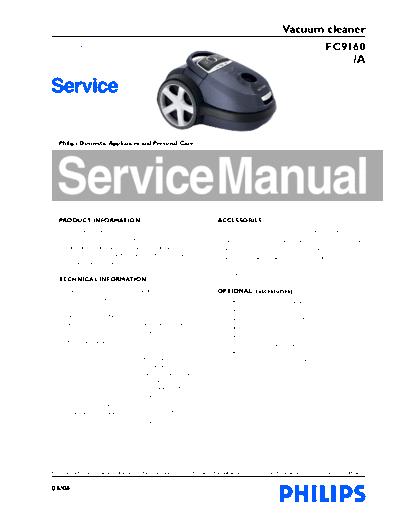

Image preview - the first page of the document
>> Download FC9160A documenatation <<Text preview - extract from the document Vacuum cleaner
FC9160
/A
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION ACCESSORIES
- This product meets the requirements regarding - Nozzle : Tri-Active all purpose nozzle
interference suppression on radio and TV. - Tubes : Metal lacquered 3-piece telescopic tube
- After the product has been repaired, it should function - Accessories : Brush, crevice nozzle and small nozzle
properly and has to meet the safety requirements as - Accessory storage : Active accessory storage bridge in
officially laid down at this moment. handgrip
- Coupling : Button coupling
TECHNICAL INFORMATION
- Colour : Slate Grey OPTIONAL (accessories)
- Power consumption : 2000 W - FC 8021 : S-bag Classic
(IEC) 230V
- FC 8022 : S-bag Clinic
- Maximum Air displacement : 47 l/s
- FC 8023 : S-bag Anti-Odour
- Vacuum : 340 mbar / 34.0 kPa
- FC 8024 : S-bag Long Performance
- Type number dustbag : FC8021
- FC 8030 : Super Clean Air filter, High-Flow
- Duststorage capacity : 4L AFS exhaust filter
- Cord length : 9m - FC 8031 : Super Clean Air HEPA filter,
- Fiter system : Double layered HEPA12 exhaust filter
compatible s-bagTM
: 3 layer permanent motor
protection filter
: Ultra Clean Air HEPA13
exhaust filter
- Dimensions of cleaner : 472 x 324 x 276 mm
- Dimensions of packaging : 593 x 393 x 296 mm
- Net weight : 6.3 kg
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands
