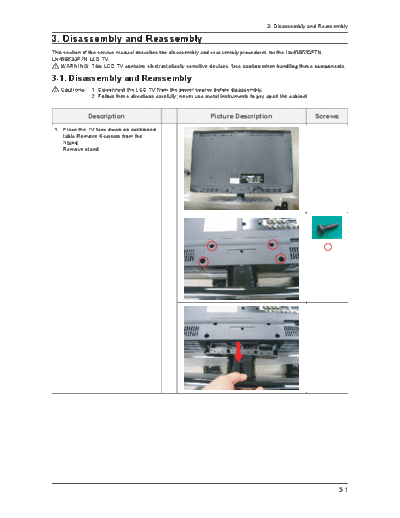

Image preview - the first page of the document
>> Download Samsung_LN40B530_LN46B530_N64A_Disassembly & Reassembly_[SM] documenatation <<Text preview - extract from the document 3. Disassembly and Reassembly
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LN40B530P7N,
LN46B530P7N LCD TV.
WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the LCD TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
Description Picture Description Screws
1. Place the TV face down on cushioned
table.Remove 4 screws from the
Stand.
Remove stand.
3-1
3. Disassembly and Reassembly
Description Picture Description Screws
2. Remove the 40" - 13, 46" - 16 screws
of rear-cover.
40"
46"
3. Lift up the rear-cover.
4. Remove the left and right speaker.
3-2
3. Disassembly and Reassembly
Description Picture Description Screws
5. Remove the 2 screws of AC inlet.
6. Remove the AC inlet.
7. Remove the 4 screws of main board
and 6 screws of IP board.
40"
46"
3-3
3. Disassembly and Reassembly
Description Picture Description Screws
8. Remove the 4 screws of stand link
bracket.Remove the stand link
bracket.
40"
46"
9. Remove the 40" - 2, 46" - 4 screws
of bracket TOP.
Remove the 2 screws of panel
Remove the 40" - 14, 46" - 13 screws
of panel bracket.
Remove the 10 screws of wall
bracket. (only 46")
40"
3-4
3. Disassembly and Reassembly
Description Picture Description Screws
46"
10. Lift up the panel.
Reassembly procedures are in the reverse order of disassembly procedures.
