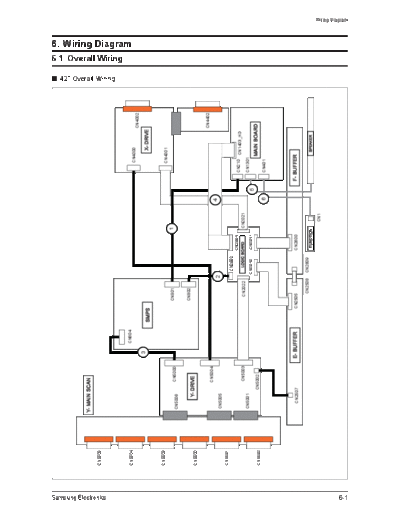

Image preview - the first page of the document
![Samsung_PS42C430_Wiring Diagram_[SM]](/pics/5c26d933f21d9.gif)
>> Download Samsung_PS42C430_Wiring Diagram_[SM] documenatation <<
Text preview - extract from the document
Y- MAIN SCAN
CN5505
Samsung Electronics
42"OverallWiring
6-1 OverallWiring
6.WiringDiagram
CN5504 CN804
CN4000
CN4002
3
SMPS X- DRIVE
CN5503
CN4001
CN801 1
CN5006 CN5000
CN802
CN5500
Y- DRIVE
CN4402
CN5004
2 4
CN5005
CN5501
CN2002
CN2004 CN210 CN1403_HD
CN5003 CN2022 LOGIC BOARD CN2021
CN5001 CN1301
CN2010 CN2011 5
CN5002 MAIN BOARD
CN5502
6 CN401
CN2507 E- BUFFER CN2505 CN2600 F- BUFFER
CN2508 CN2609
FUNCTION SPEAKER
CN1
6-1
Wiring Diagram
6-2
Wiring Diagram
Y- MAIN SCAN
CN5505
3
50"OverallWiring
CN804
CN5504
CN4701
CN4901
X- DRIVE
CN5601 SMPS
CN5503
CN580 2 CN4001
CN801 1
CN4100
CN802 2
CN5500 CN5803
CN5801
Y- DRIVE CN4102
4
CN5804
CN5501
CN200 2
CN2020
CN210 CN1403_HD
CN2006 LOGIC BOARD CN2005
CN5805 CN500 1
CN1301
CN2010 CN2011 5
MAIN BOARD
CN5502
CN560 2 6 CN401
CN250 1 E- BUFFER CN2500 CN2600
F- BUFFER
CN2502 CN260 1 FUNCTION SPEAKER
CN1
Samsung Electronics
Wiring Diagram
The code number of cable(Lead-connector) can be changed, see "5. Exploded View & Part List."
42"Cable(Lead-connector)
1 4
Use
POWER 12P LVDS FFC 30P
Code BN39-01285C BN96-12469E
50"Cable(Lead-connector)
1 4
Use
POWER 12P LVDS FFC 30P
Code BN39-01285A BN96-12469G
Samsung Electronics 6-3
Wiring Diagram
6-1-1 PinConnection
1 2 3
CN801(SMPS) CN802(SMPS) CN804(SMPS)
CN210 (Main Board) CN2002 (Logic Board) CN5000 (42" Y Board) /
PinNo. Signal PinNo. Signal CN5601 (50" Y Board)
1 PS_ON 1 D5.3V PinNo. Signal
2 STBY 2 D5.3V 1 Vs
3 GND_15Vamp 3 GND 2 Vs
4 15Vamp 4 GND 3 GND
5 GND_5.3V 5 PS_ON 4 Vg
6 GND_5.3V 6 VS_ON 5 GND
7 5.3V 6 Va
8 5.3V
9 GND_15V
10 15V
11 15V
12 5.3V
6-4 Samsung Electronics
Wiring Diagram
4 5
CN1403_HD (MAIN Board) CN1301 (MAIN Board)
CN2004 (42" Logic Board) / CN2020 (50" Logic Board) SPEAKER
PinNo. Signal PinNo. Signal PinNo. Signal
1 SDA 16 ROCLK+ 1 R+_OUT
2 GND 17 ROCLK- 2 R-_OUT
3 SCL 18 GND 3 L+_OUT
4 GND 19 RO[2]+ 4 L-_OUT
5 UART Rx 20 RO[2]-
6 GND 21 GND
7 UART Tx 22 RO[1]+
8 GND 23 RO[1]-
9 3D_SYNC 24 GND
10 GND 25 RO[0]+
11 PDP_GO 26 RO[0]-
12 GND 27 RO[4]+
13 RO[3]+ 28 RO[4]-
14 RO[3]- 29 GND
15 GND 30 GND
6
CN401 (MAIN Board)
POWER&IR
PinNo. Signal
1 IR
2 GND
3 A3.3V
4 SCL
5 SDA
6 KEY_INPUT1
7 KEY_INPUT2
8 LED
9 A3.3V
10 GND
Samsung Electronics 6-5
Wiring Diagram
6-1-2 Connectorrole
Loc.No. Description
CN801 Power input connect (12 Pin) for Main Board
CN802 Power input connect (6 Pin) for Logic Board
CN804 Vs (202V),Vg (15V) Power input connect (6 Pin) of SMPS for Y-Drive
CN210 Power input connect (12 Pin) from SMPS
CN1301 Speak out connect on Main Board
CN1403_HD Image signal (LVDS) connect (31 Pin) for Logic board
6-6 Samsung Electronics
