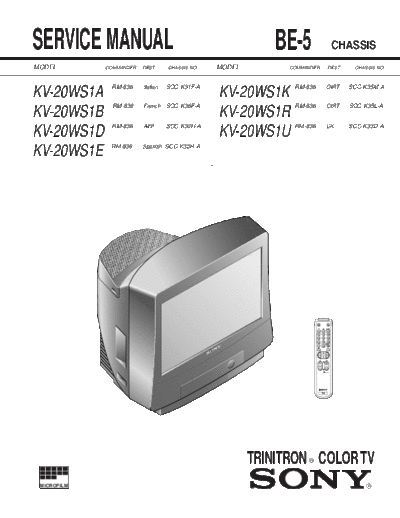

Image preview - the first page of the document
>> Download SONY chassis BE-5 documenatation <<Text preview - extract from the document KV-20WS1
SERVICE MANUAL BE-5 CHASSIS
MODEL COMMANDER DEST. CHASSIS NO. MODEL COMMANDER DEST. CHASSIS NO.
KV-20WS1A RM-836 Italian SCC-K31F-A
KV-20WS1K RM-836 OIRT SCC-K35M-A
RM-836 French SCC-K36F-A RM-836 OIRT SCC-K35L-A
KV-20WS1B KV-20WS1R
RM-836 AEP SCC-K32H-A RM-836 UK SCC-K33D-A
KV-20WS1D KV-20WS1U
KV-20WS1E RM-836 Spanish SCC-K30H-A
MENU
PROGR
RM-836
TRINITRON COLOR TV
R
MICROFILM R
--1--
KV-20SW1
Television
ITEM MODEL Channel Coverage Colour System
System
VHF: E2-E12, UHF: E21-E69
PAL, SECAM
A-H2, U1-U10, M1-10
Italian B/G/H NTSC 3.58,4.43
CABLE TV: S01-S05, S1-S20
(only video in)
HYPER: S21-S41
VHF: E2-E12, UHF: B21-B69, HYPER: S1-S41
D/K R1-R12, R21-R69 PAL, SECAM
French B/G/H, D/K, I, L I UHF: B21-B69 NTSC 3.58,4.43
L F2-F10, B-Q, F21-F69 (only video in)
CABLE TV: S01-S05, S1-S20
VHF: E2-E12, UHF:E21-E69, HYPER: S1-S41 PAL, SECAM
AEP B/G/H, D/K D/K R1-R12, R21-R69 NTSC 3.58,4.43
CABLE TV: S01-S05, S1-S20 (only video in)
VHF: E2-E12, UHF:E21-E69, HYPER: S1-S41 PAL, SECAM
Spanish B/G/H, D/K D/K R1-R12, R21-R69 NTSC 3.58,4.43
CABLE TV: S01-S05, S1-S20 (only video in)
VHF: E2-E12, UHF:E21-E69, HYPER: S1-S41 PAL, SECAM
OIRT B/G/H, D/K D/K R1-R12, R21-R69 NTSC 3.58,4.43
CABLE TV: S01-S05, S1-S20 (only video in)
PAL
UK I UHF: B21-B69 NTSC 3.58,4.43
(only video in)
MODEL 20WS1A 20WS1B 20WS1D 20WS1E 20WS1K 20WS1R 20WS1U
Power Consumption 70W 70W 70W 70W 70W 70W 92W
SPECIFICATIONS
Picture Tube Super Trinitron Wide
Approx. 49 cm (20 inches)
(Approx. 46 cm picture measured
diagonally) 86
