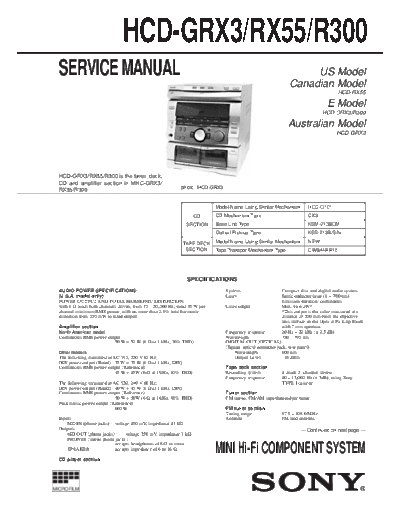

>> Download Sony HCD-GRX3 documenatation <<Text preview - extract from the document HCD-GRX3/RX55/R300
SERVICE MANUAL US Model
Canadian Model
HCD-RX55
E Model
HCD-GRX3/R300
Australian Model
HCD-GRX3
HCD-GRX3/RX55/R300 is the tuner, deck,
CD and amplifier section in MHC-GRX3/
photo : HCD-GRX3
RX55/R300.
Model Name Using Similar Mechanism HCD-G101
CD CD Mechanism Type CX3
SECTION Base Unit Type KSM-213BCM
Optical Pick-up Type KSS-213B/S-N
TAPE DECK Model Name Using Similar Mechanism NEW
SECTION Tape Transpor Mechanism Type CWB44RR10
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS: System Compact disc and digital audio system
(U.S.A. model only) Laser Semiconductor laser ( = 780 nm)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION: Emission duration: continuous
with 6 loads both channels driven, from 70
