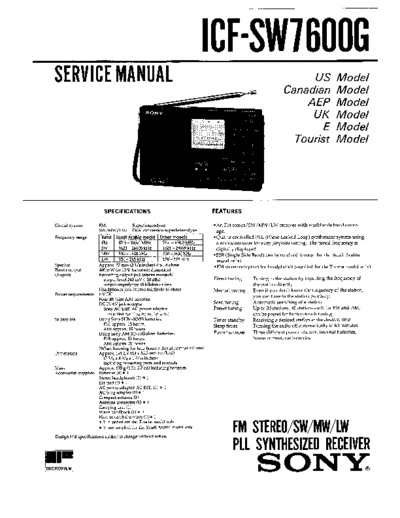

Image preview - the first page of the document
>> Download Sony ICF-SW7600G documenatation <<Text preview - extract from the document ICF-SW7600G
US Model
Canadian Model
SERVICE MANUAL AEP Model
UK Model
Ver 1.0 1998. 06
E Model
Tourist Model
Chinese Model
SUPPLEMENT - 2
File this Supplement with the Service Manual.
Subject : CHINESE MODEL HAS BEEN ADDED
The Chinese model is approximately the same as the E model.
Only difference between Chinese model and E model are listed.
Refer to original Service Manual (9-959-655-11) and Supplement-1 (9-959-655-81) previously issued for the other information.
r DIFFERENCE PARTS LIST
EXPLODED VIEWS (Service Manual See page 26, 27)
E model Chinese model
Page Ref. No. Part No. Description Part No. Description
! : Difference portion
5-1. CABINET SECTION
ANT1
19
21
17
21 %
22 Chinese model
18
26 ^
23
Chinese model
21
16
13
Note : Stick sheets (A) and (B) on the rear cabinet
of the Chinese model when replacing.
1 X-3369-299-1 CABINET (FRONT) ASSY X-3375-898-1 CABINET (FRONT) ASSY
