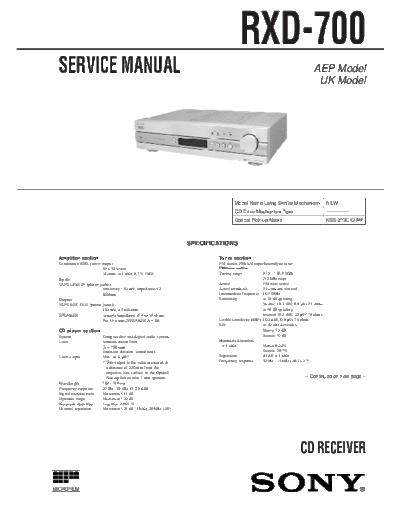

SERVICE MANUAL AEP Model
UK Model
Model Name Using Similar Mechanism NEW
CD Drive Mechanism Type
Optical Pick-up Name KSS-213C/Q-RP
SPECIFICATIONS
Amplifier section Tuner section
Continuous RMS power output FM stereo, FM/AM superheterodyne tuner
55 + 55 watts FM tuner section
(4 ohms at 1 kHz, 0.7% THD) Tuning range 87.5 - 108.0 MHz
Inputs (50 kHz step)
TAPE LINE IN (phono jacks): Aerial FM wire aerial
sensitivity 150 mV, impedance 50 Aerial terminals 75 ohm unbalanced
kilohms Intermediate frequency 10.7 MHz
Outputs Sensitivity at 26 dB quieting
TAPE REC OUT (phono jacks): (mono) 10.3 dBf, 0.9
