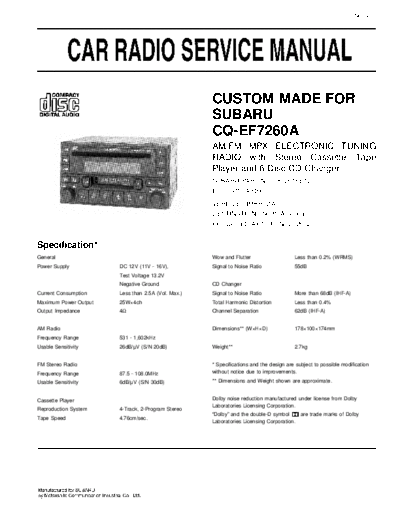

Image preview - the first page of the document
>> Download CQ-EF7260A documenatation <<Text preview - extract from the document ORDER No. 6081
CUSTOM MADE FOR
SUBARU
CQ-EF7260A
AM/FM MPX ELECTRONIC TUNING
RADIO with Stereo Cassette Tape
Player and 6-Disc CD Changer
SUBARU PART No. : 86201FE120
ID CORD : P129
VEHICLE : IMPREZA
DESTINATION : North America
PRODUCED AFTER : Nov., 2002
Specification*
General Wow and Flutter Less than 0.2% (WRMS)
Power Supply DC 12V (11V - 16V), Signal to Noise Ratio 55dB
Test Voltage 13.2V
Negative Ground CD Changer
Current Consumption Less than 2.5A (Vol. Max.) Signal to Noise Ratio More than 68dB (IHF-A)
Maximum Power Output 25W
