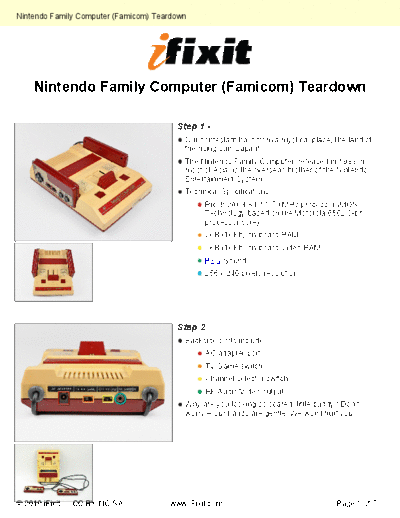

Image preview - the first page of the document
>> Download Teardown-3199 documenatation <<
Text preview - extract from the document
Nintendo Family Computer (Famicom) Teardown
Nintendo Family Computer (Famicom) Teardown
Step 1 -
Our contestant hails from a mystical place, the land of
the rising sun, Japan!
The Nintendo Family Computer, released in 1983 in
most of Asia, is the overseas brother of the Nintendo
Entertainment System.
Technical Specifications:
Ricoh 2A03 8-bit 1.79 MHz processor (MOS
Technology based on the Motorola 6502 8-bit
processor core)
2KB (16Kb) on-board RAM
2KB (16Kb) on-board Video RAM
PSG Sound
256 x 240 pixels resolution
Step 2
Backside ports include:
AC adapter port
TV/Game switch
Channel selector switch
RF Audio/Video output
Why are you looking so scared, little buddy? Don't
worry -- our hands are gentle. We won't hurt you.
