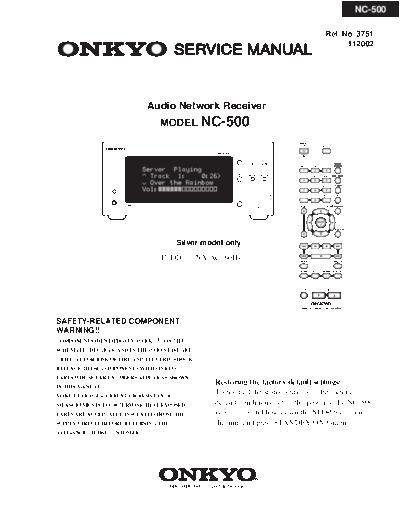

Image preview - the first page of the document
hfe_onkyo_nc-500_service


>> Download hfe_onkyo_nc-500_service documenatation <<

Text preview - extract from the document
                                                                                                                    NC-500

                                                                                                           Ref. No. 3751
                                                                                                                 112002
                                                            SERVICE MANUAL


                                                Audio Network Receiver
                                                          MODEL NC-500

                                 AUDIO NETWORK RECEIVER
                                                                                         VOLUME
                  STANDBY / ON
                                                                               AUDIO
                                                                               INPUT




                   STANDBY
                                                                               DISPLAY




                   SETUP




                   PHONES                                                      SELECT




                                                                                            NC- 500




                                                             Silver model only
                                                          TUDD     120V AC, 60Hz




SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK                             ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
                                                                         Restoring the factory default settings:
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
                                                                         To reset all the stored settings to the factory
MEASUREMENTS TO DETERMINE THAT EXPOSED                                   default conditions, while the power to the NC-500
PARTS ARE ACCEPTABLY INSULATED FROM THE                                  is on, press and hold down the STOP button on
SUPPLY CIRCUIT BEFORE RETURNING THE                                      the unit, and press STANDBY/ON button.
APPLIANCE TO THE CUSTOMER.
                                                                                                 NC-500

Specifications
Amplifier Section                                  Tuner Section
Power output                                       Tuning range
FTC    15 watts per channel, min RMS, at 8 ohms,          FM: 87.50
