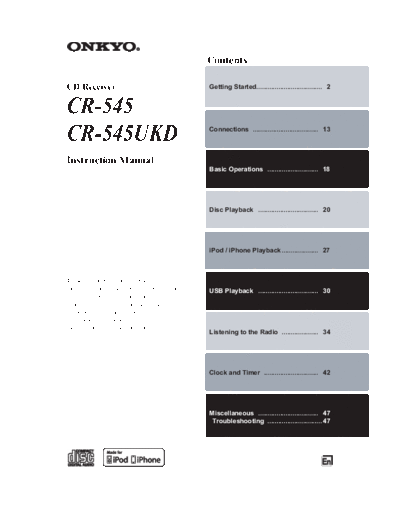

Image preview - the first page of the document
Manual_CR-545_CR-545UKD_En


>> Download Manual_CR-545_CR-545UKD_En documenatation <<

Text preview - extract from the document
                                                        Contents

CD Receiver                                             Getting Started.................................... 2


CR-545
CR-545UKD                                               Connections .................................... 13



Instruction Manual
                                                        Basic Operations ............................ 18




                                                        Disc Playback ................................. 20




                                                        iPod / iPhone Playback .................... 27



Thank you for purchasing an Onkyo CD receiver.
Please read this manual thoroughly before making
                                                        USB Playback ................................. 30
any connections and plugging it in.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new CD receiver.
Please retain this manual for future reference.
                                                        Listening to the Radio .................... 34




                                                        Clock and Timer .............................. 42




                                                        Miscellaneous ................................. 47
                                                         Troubleshooting .............................. 47
 WARNING:
 TO REDUCE THE RISK OF FIRE OR
 ELECTRIC SHOCK, DO NOT
 EXPOSE THIS APPARATUS TO                                    The lightning flash with arrowhead symbol, within an
 RAIN OR MOISTURE.                                           equilateral triangle, is intended to alert the user to the
 CAUTION:                                                    presence of uninsulated "dangerous voltage" within the
 TO REDUCE THE RISK OF                                       product's enclosure that may be of sufficient magnitude
 ELECTRIC SHOCK, DO NOT                                      to constitute a risk of electric shock to persons.
 REMOVE COVER (OR BACK). NO                                  The exclamation point within an equilateral triangle is
 USER-SERVICEABLE PARTS                                      intended to alert the user to the presence of important
 INSIDE. REFER SERVICING TO                                  operating and maintenance (servicing) instructions in the
 QUALIFIED SERVICE PERSONNEL.                                literature accompanying the appliance.
Important Safety Instructions
1.    Read these instructions.                                   15. Damage Requiring Service
2.    Keep these instructions.                                       Unplug the apparatus from the wall outlet and
3.    Heed all warnings.                                             refer servicing to qualified service personnel
4.    Follow all instructions.                                       under the following conditions:
5.    Do not use this apparatus near water.                          A. When the power-supply cord or plug is
6.    Clean only with dry cloth.                                         damaged,
7.    Do not block any ventilation openings. Install in              B. If liquid has been spilled, or objects have
      accordance with the manufacturer's instructions.                   fallen into the apparatus,
8.    Do not install near any heat sources such as                   C. If the apparatus has been exposed to rain or
      radiators, heat registers, stoves, or other                        water,
      apparatus (including amplifiers) that produce                  D. If the apparatus does not operate normally by
      heat.                                                              following the operating instructions. Adjust
9.    Do not defeat the safety purpose of the polarized                  only those controls that are covered by the
      or grounding-type plug. A polarized plug has two                   operating instructions as an improper
      blades with one wider than the other. A                            adjustment of other controls may result in
      grounding type plug has two blades and a third                     damage and will often require extensive work
      grounding prong. The wide blade or the third                       by a qualified technician to restore the
      prong are provided for your safety. If the                         apparatus to its normal operation,
      provided plug does not fit into your outlet,                   E. If the apparatus has been dropped or
      consult an electrician for replacement of the                      damaged in any way, and
      obsolete outlet.                                               F. When the apparatus exhibits a distinct change
10.   Protect the power cord from being walked on or                     in performance this indicates a need for
      pinched particularly at plugs, convenience                         service.
      receptacles, and the point where they exit from            16. Object and Liquid Entry
      the apparatus.                                                 Never push objects of any kind into the apparatus
11.   Only use attachments / accessories specified by                through openings as they may touch dangerous
      the manufacturer.                                              voltage points or short-out parts that could result
12.   Use only with the cart, stand, tripod, bracket, or             in a fire or electric shock.
      table specified by the                                         The apparatus shall not be exposed to dripping or
                                     PORTABLE CART WARNING
      manufacturer, or sold                                          splashing and no objects filled with liquids, such
      with the apparatus.                                            as vases shall be placed on the apparatus.
      When a cart is used, use                                       Don't put candles or other burning objects on top
      caution when moving                                            of this unit.
      the cart / apparatus                                       17. Batteries
      combination to avoid                                           Always consider the environmental issues and
      injury from tip-over.                                          follow local regulations when disposing of
13.   Unplug this apparatus during lightning storms or               batteries.
      when unused for long periods of time.                      18. If you install the apparatus in a built-in
14.   Refer all servicing to qualified service personnel.            installation, such as a bookcase or rack, ensure
      Servicing is required when the apparatus has                   that there is adequate ventilation.
      been damaged in any way, such as power-supply                  Leave 20 cm (8") of free space at the top and
      cord or plug is damaged, liquid has been spilled               sides and 10 cm (4") at the rear. The rear edge of
      or objects have fallen into the apparatus, the                 the shelf or board above the apparatus shall be set
      apparatus has been exposed to rain or moisture,                10 cm (4") away from the rear panel or wall,
      does not operate normally, or has been dropped.                creating a flue-like gap for warm air to escape.


2
Precautions
1. Recording Copyright--Unless it's for personal                    all discs and turn off the power.
   use only, recording copyrighted material is illegal     9. Installing this Unit
   without the permission of the copyright holder.
