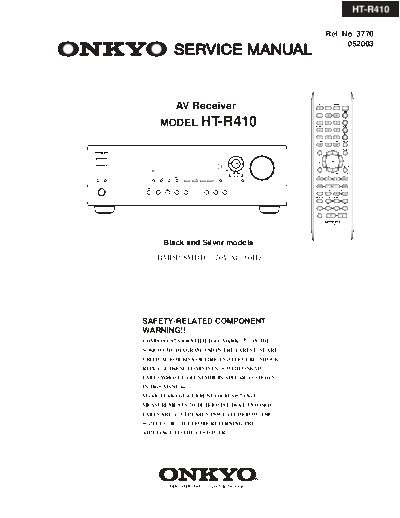

Image preview - the first page of the document
hfe_onkyo_ht-r410_service


>> Download hfe_onkyo_ht-r410_service documenatation <<

Text preview - extract from the document
                                                       HT-R410

                                                Ref. No. 3770
                                                      052003
          SERVICE MANUAL


           AV Receiver
     MODEL HT-R410




      Black and Silver models
    BMDD,SMDD 120V AC, 60Hz




SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK      ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
                                                                                                                                               HT-R410

Specifications
AMPLIFIER SECTION                                                              TUNER SECTION
Power Output (FTC Power, Rated Power)                                          FM
Front L/R Speakers:                 100 Watts per channel min. RMS. Into       Tuning Range:                     87.5-108.0 MHz (100 kHz steps)
                                    8 ohms 2 channel driven, from 20 to        Usable Sensitivity
                                    20,000 Hz with no more than 0.08%             Mono:                          11.2 dBf, 1.0
