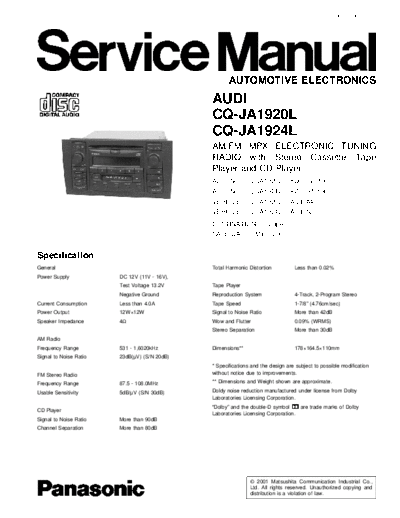

Image preview - the first page of the document



>> Download CQ-JA1920_CQ-JA1924 documenatation <<

Text preview - extract from the document

                                                                                          ORDER No. AED0101023




                                                     AUTOMOTIVE ELECTRONICS
                                              AUDI
                                              CQ-JA1920L
                                              CQ-JA1924L
                                              AM/FM MPX ELECTRONIC TUNING
                                              RADIO with Stereo Cassette Tape
                                              Player and CD Player
                                              AUDI No. (CQ-JA1920L) : 8D0 035 195E
                                              AUDI No. (CQ-JA1924L) : 8Z0 035 196
                                              VEHICLE (CQ-JA1920L) : Audi A4
                                              VEHICLE (CQ-JA1924L) : Audi A2
                                              DESTINATION : Europe
                                              SALE DATE : May., 2000


Specification
General                                       Total Harmonic Distortion          Less than 0.02%
Power Supply            DC 12V (11V - 16V),
                        Test Voltage 13.2V    Tape Player
                        Negative Ground       Reproduction System                4-Track, 2-Program Stereo
Current Consumption     Less than 4.0A        Tape Speed                         1-7/8" (4.76cm/sec)
Power Output            12W
