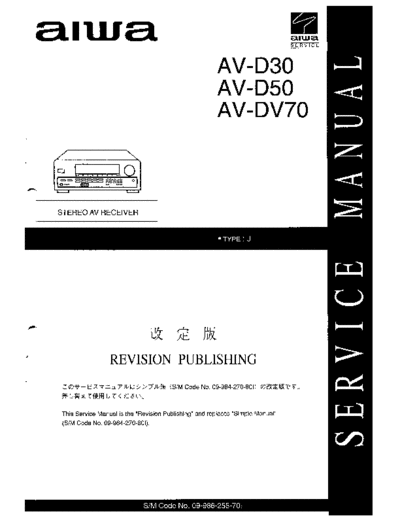

Image preview - the first page of the document
>> Download hfe_aiwa_av-d30_d50_dv70_service documenatation <<Text preview - extract from the document anua
`
STEREO AV RECEIVER
,#ms
?!! E Hi
REVISION PUBLISHING
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-984-270-801).
SPECIFICATIONS [AV-D30]
FM tuner section General
Tuning range 87.5 MHz to 108 MHz Power requirements 120 V AC, 60 I-Iz
Usable sensitivity 13.2
dBf Power consumption 125W
(IHF) 430 x 155 x 351
Dimensions mm
Antenna terminals 75 ohms (unbalanced)
(W XHXD) (17 x 6'/8 x 137/8 in.)
Weight 10.0 kg (22 lb 1 OZ.)
AM tuner section
Tuning range 530 kHz to 1710 kHz (1 O kHz step),
531 kHz to 1602 kHz (9 kHz step)
q Design and specifications are subject to change without notice.
Usable sensitivity 350 pVlm
q Manufactured under license from Dolby Laboratories Licensing
Antenna Loop antenna
Corporation.
Amplifier section q "DOLBY", the double-D symbol uO are "PRO LOGIC" are
Power output [Stereo Mode]
trademarks of Dolby Laboratories Licensing Corporation.
Front
85 watts per channel, Mm. RMS at 8
ohms, from 40 Hz to 20 kHz, with no
more than 0.9% Total Harmonic
Dlstorfion
[Dolby Pro Logic or 5.1 CH Mode]
Front
70 watts per channel, Min. RMS at 8
ohms, from 40 Hz to 20 kHz, with no
more than 0.9% Total Harmomc
Dlstortlon
Rear (Surround)
35 watts per channel, Min. RMS at 8
ohms, 1 kHz, with no more than 0.97.
Total Harmonic Distortion
Center
70 watts, Mm RMS at 8 ohms, 1 kHz,
with no more than 0.9
