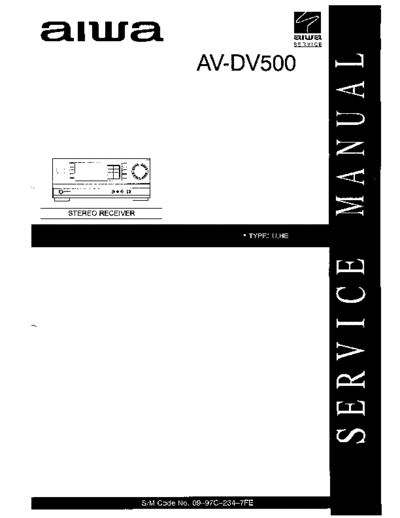

Image preview - the first page of the document
>> Download hfe_aiwa_av-dv500_service documenatation <<
Text preview - extract from the document
anua anua
SERVICE
AV-DV500
STEREO RECEIVER
SPECIFICATIONS
cFM tuner section>
Tuning range 87.5 MHz to 108 MHz outputs AUDIO OUT (REC OUT) : 230mV
Usable sensitivity (lHF) 13.2 dBf (2 kohms) (U)
Antenna 75 ohms (unbalanced) AUDIO OUT (REC OUT) : 250mV
(2 kohms) (HE)
VIDEO OUT (MONITOR) :
Tuning range 530 kHz to 1710 kHz (1 O kHz step) 1 Vp-p (75 ohms)
531 kHz to 1602 kHz (9 kHz step) SUPER WOOFER :3.1 V
Usable sensitivity 350 pvlrn FRONT SPEAKERS IMP :8 s2/4s2
Antenna Loop antenna selectable (front speakers A and B) :
With the SPEAKER IMPEDANCE
cAmplifier section> SELECTOR set to 4s2, accepts
Power output [Stereo mode] speakers of 4 ohms.
Front With the SPEAKER IMPEDANCE
U :75 watts per channel, Min. SELECTOR set to 8Q, accepts
RMS at 4 or 8 ohms, from 40 Hz to speakers of 8 ohms or more,
20 kHz, with no more than 0.9% SURROUND SPEAKERS IMP :8 S2
Total Harmonic Distortion (surround speakers) : accepts speakers
HE: Rated : 85W + 85W of 8 ohms or more
(8 ohms, T.H.D. 1%, 1 kHz) CENTER SPEAKERS IMP :8 L2/4L2
Reference: 100W + 100W selectable
(8 ohms, T.H.D. 10%, 1 kHz) With the SPEAKER IMPEDANCE
[Dolby Pro Logic or 5 CH SELECTOR set to 4s2, accepts
Surround mode] speaker of 4 ohms.
Front With the SPEAKER IMPEDANCE
U: 70 watts per channel, Min. SELECTOR set to 6Q, accepts
RMS at 4 or 8 ohms, from 40 Hz to speaker of 8 ohms or more.
20 kHz, with no more than 0.9% PHONES (stereo jack) : accepts
Total Harmonic Distortion headphones of 32 ohms or more
HE: Rated: 65W + 65W Muting -20 dB
(8 ohms, T.H.D. 1%, 1 kHz)
Reference: 75W + 75W
(8 ohms, T.H.D. 10%, 1 kHz) Power requirements U:120VAC,60HZ
Rear (Surround) HE: 120 V1220-230/240 V AC,
U: 70 watts per channel, Min. switchable, 50/60 Hz
RMS at 8 ohms, 1 kHz, with no Power consumption U:180W
more than 0.97. Total Harmonic HE :200 W
Distortion Dimensions 360 x 153.5x 341 mm
HE: Rated: 65W + 65W (W XHXD) (141/, x 6'/, x 131/, in.)
(8 ohms, T.H.D. 1%, 1 kHz) Weight U:8.9kg(191b100z.)
Reference : 75W + 75W HE :10.2 kg
(8 ohms, T.H.D. 10%, 1 kHz)
Center
U :70 watts, Min. RMS at 4 or 8
ohms,l kHz, with no more than 0.9%
Total Harmonic Distortion
HE: Rated: 85W
(8 ohms, T.H.D. 1%, 1 kHz)
Reference : 75W
(8 ohms, T.H.D. 10%, 1 kHz)
Total Harmonic distortion 0.09 % (60 W, 1 kHz, 8 ohms,
Front)
Inputs AUDIO IN
PHONO: 2,8mV (50 kohms)
CD: 370 mV (50 kohms) (U)
CD: 400 mV (50 kohms) (HE)
q Design and specifications are subject to change without
TAPE MONITOR :200 mV
(25 kohms) (U) notice.
TAPE MONITOR: 400 mV
q The word "BBE" and the "BBE symbol" are trademarks of BBE
(25 kohms) (HE)
VIDEO 1, VIDEO 2/LD/MD, Sound, Inc.
VIDEO 3, AUWTV: 400 mV Under license from BBE Sound, Inc.
(50 kohms)
SURROUND IN :400 mV
c Manufactured under license from Dolby Laboratories Licensing
(50 kohms)
Corporation.
CENTER :400 mV (50 kohms)
VIDEO IN : lVp-p (75 ohms) "DOLBY, the double-D symbol Do and "PRO LOGIC" are
MIC 1, MIC 2: lmV (20 kohms) trademarks of Dolby Laboratories Licensing Corporation.
