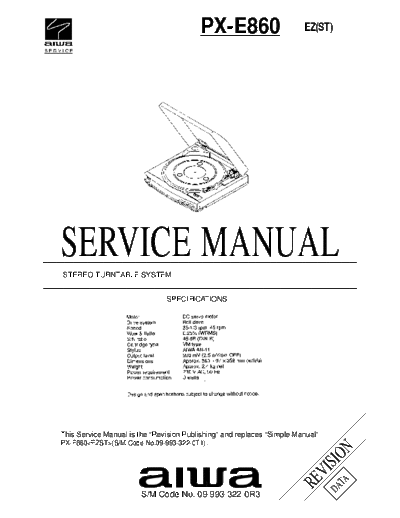

Image preview - the first page of the document
>> Download aiwa-px-e860 documenatation <<
Text preview - extract from the document
PX-E860 EZ(ST)
SERVICE MANUAL
STEREO TURNTABLE SYSTEM
SPECIFICATIONS
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
PX-E860(S/M Code No.09-993-322-0T1).
N
SIO
VI
RE
TA
DA
S/M Code No. 09-993-322-0R3
2
ELECTRICAL MAIN PARTS LIST
REF. NO PART NO. KANRI DESCRIPTION
NO.
IC
87-027-683-010 IC,TA7325
DIODE
87-001-783-080 DIODE,1N4002
PRE AMP C.B
S8-E27-BK0-190 SIGNAL WIRE
C102 87-015-995-810 CAP,E 4.7-50V
C104 87-010-412-010 CAP,E 10-25V
C107 87-015-995-810 CAP,E 4.7-50V
C202 87-015-995-810 CAP,E 4.7-50V
C204 87-010-412-010 CAP,E 10-25V
C207 87-015-995-810 CAP,E 4.7-50V
C301 87-010-564-010 CAP,E 100-16V
C302 87-010-564-010 CAP,E 100-16V
SW101 S3-PXE-900-280 SLIDE SWITCH
POWER C.B
C1 87-010-237-010 CAP,E 1000UF/16V M
ACCESSORIES LIST
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 S0-0H2-000-160 ADAPTOR 45RPM
2 S8-60E-1C7-500 INSTRUCTION BOOK(PXE860EZ)
2 SE-860-KC7-530 INSTRUCTION BOOK(PXE860K)
2 SE-860-UC7-520 INSTRUCTION BOOK(PXE860U)
3 SX-E85-5E6-050 INSTRUCTION BOOK
3
WIRING
1 2 3 4 5 6 7
A
B
C
D
E
F
G
H
I
J
4
SCHEMATIC DIAGRAM
5
MECHANICAL EXPLODED VIEW 1/1
1
20
21
2
16
22
23
24 25 3
27 C
L 2 8 4
16
26 SHIELD WIRE
22 (WHITE)
WIRE(BLK) 5
28 P
GROUND
29 SHEET
9 6
30
F SHIELD WIRE
14 13 Q (RED)
31 14
10 7
34
10-1
32 10-2
35
K 16 11
C 33 U only
15
H 17 12
36 C K C
37 18
38
33 K only
39 19
12
STEEL CLAMPER EZ only
(K only) 12
40
75
65
77
67
76 G 56 NUT
69 B 51
57
65 F
E 58 52
M N 54 53 91
90 66 60
78 G
68 62
81 69 E O D
72 61 D
79 70 C 59 J 41
C I 42
80 73 71 A
82 55 43
64 63 45
M 44
83 F R 46
84 M 47
74 M
F 48 K
E 49 I
86 50
85
BOTTOM PLATE
C
INSULATION
SHEET
87 88 89
89 E
F
F F
E
F 89
88
E
89
E
6
MECHANICAL MAIN PARTS LIST 1/1
REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION
NO. NO.
1 S0-3B6-000-260 HINGE ASS'Y 67 S0-0B6-001-390 KNOB SHAFT
2 S4-B60-002-6A0 FOOT FOR DUST COVER(PXE850) 68 SP-EX8-509-000 CUE,KNOB(PXE860)
3 S0-SL2-4F1-180 PIN (FOR TONEARM SET) 69 S0-0F7-002-590 KNOB SET
4 S0-SL2-4F2-310 TONE ARM SET 70 S0-0L1-001-330 PULLEY
5 S3-SL2-4F0-830 SPRING
71 S0-1H7-030-380 MOTOR MMI-6T2RWK
6 S3-SL2-4F0-560 ROTARY SHAFT ASSY 72 S0-SL2-4F2-400 PENDULUM(S)
7 S0-SL2-4F1-070 TONE ARM SHAFT SET 73 S3-SL2-4F0-660 SPRING
8 S0-SL2-4F1-320 TONE ARM TUBE 74 S0-0B6-001-440 PRESS SET
9 S0-SL3-4F2-320 HEADSHELL 75 SP-XE8-508-500 DECORATIVE PLATE
10 S2-E27-BK0-480 CARTRIDGE(W/STYLUS)
76 S8-60L-HA8-970 SPEED KNOB(PXE860)
10-1S1-E27-BK0-230 STYLUS 77 S3-SL2-4F0-110 MICRO SWITCH
10-2S0-0B6-011-800 STYLUS COVER 78 S3-SL2-4F0-760 SPRING
11 S8-E27-BK0-190 SIGNAL WIRE 79 SP-XE8-508-980 START KNOB(PXE860)
! 12 S0-930-040-160 AC CORD(E) 80 SP-XE8-508-990 CUT KNOB(PXE860)
! 12 SH-MD5-00B-037 AC CORD(K)
81 SP-XE8-501-820 SPR
! 12 SC-132-0FA-034 AC CORD(U) 82 SP-XE8-501-830 SPR
13 S3-SL2-4F0-670 SPRING 83 S0-SL2-4F2-340 PENDULUM(L)
14 S0-SL2-4F1-17A COPPER WASHER 84 S3-SL2-4F0-680 SPRING
15 S0-SL2-4F2-470 SELECT PLATE 85 S0-SL2-4F2-430 STATING SUPPORT
16 S0-6F2-000-130 CS WASHER (3M/M)
! 86 S1-PXE-850-068 POWER TRANS(EZ)
17 S3-SL2-4F0-690 SPRING ! 86 SP-XE8-50K-070 POWER TRANS(K)
18 S0-SL2-4F2-380 LIFTER ! 86 SP-XE8-50U-067 POWER TRANS(U)
19 S0-3MD-260-590 SPRING ! 87 -------------- POWER P.C.B Assy
20 S4-PXE-900-720 PLATTER MAT 88 S0-PXE-903-320 FOOT RING
21 SP-XE8-508-950 DUST COVER
89 S4-SL2-4F0-360 RUBBER FOOT
22 S6-SL2-4F0-570 WASHER METAL 3-10-0.5 90 S8-60K-C18-060 CUE KNOB SHAFT BASE(PXE860)
23 S0-SL2-4F1-300 FRICTION LINK 91 -------------- DUAL PREAMP P.C.B
24 S0-SL2-4F1-310 ACTUATING LINK A 87-741-072-410 SCREW,UT2+2.6-5
25 S0-6B3-000-290 E-RING WASHER 1.5MM B S6-SL2-4F0-550 WASHER
26 S3-SL2-4F0-770 SPRING
C 87-761-095-410 SCREW VFT2+3-8
27 S0-0F7-002-280 PLATTER TARNTABULE D 87-751-095-410 SCREW VT2+3-8
28 S0-SL2-4F2-480 CAM GEAR E 87-761-097-410 SCREW VFT2+3-12
29 S4-PXE-900-760 BELT F 87-751-096-410 SCREW VT2+3-10
30 S3-SL2-4F0-500 CAM GEAR CONTROL ASSY G 87-751-074-410 SCREW VT2+2.6-8
31 S3-SL2-4F0-490 RETURN LINK ASS'Y
H S2-SL2-4F0-930 SCREW
32 S0-0H2-000-160 ADAPTOR 45RPM I 87-761-096-410 SCREW VFT2+3-10
33 S4-SL2-4F0-380 RUBBER FOOT FOR MOTOR J 87-481-097-410 SCREW VWS+3-12
34 S0-SL2-4F2-440 SMALL GEAR K 87-481-103-410 SCREW VWS+3-24
35 S2-PXE-900-090 PLATER SHAFT ASS'Y L S0-6F2-000-060 WASHER
36 S3-SL2-4F0-510 PLATE SHAFT SET ASY
M S0-6F2-000-110 E-RING WASHER (3M/M)
37 S0-7B6-000-020 STEEL BALL N S0-6F2-000-120 E-RING WASHER (5M/M)
38 S0-SL2-4F2-360 SELECT RECORD KNOB O S6-SL2-4F0-580 WASHER
39 SP-EX8-508-500 DECORATIVE PLATE P 87-261-097-410 SCREW V+3-12
40 S8-55L-HA8-940 BASE Q 87-261-074-410 SCREW,V+2.6-8
41 S4-SL2-4F0-390 RUBBER CAP
R S6-DP3-6F0-640 WASHER\
42 S0-SL2-4F1-140 SHAFT
43 S6-SL2-4F0-560 WASHER METAL 5-8-0.5
44 S3-SL2-4F0-780 SPRING
45 S0-SL2-4F2-410 LIFTER SET
46 S3-SL2-4F0-720 SPRING
47 S0-SL2-4F1-120 SHAFT
48 S3-SL2-4F0-520 CUEING LEVER ASSY
49 S0-6B3-000-390 SPRING WASHER METAL 3-5-1
50 S1-A10-000-400 NUT
51 S0-SL2-4F2-390 FIEXING SWITCH SET
52 S3-SL2-4F0-160 SW,MICRO
53 -------------- CONDENSOR
54 S0-6D2-000-510 SPRING WASHER METAL 3-6-1
55 S0-SL2-4F1-130 SHAFT
56 S0-SL2-4F1-160 SHAFT
57 S3-SL2-4F0-790 SPRING
58 S0-6H2-000-190 WASHER METAL 3-5-1
59 S0-SL2-4F2-420 STATING LEVER
60 S0-SL2-4F2-350 PENDULUM(M)
61 S0-3L1-001-030 SPRING
62 S0-0F7-002-720 OIL SHAFT SET
63 S0-SL2-4F1-260 CONTROL PLATE
64 SP-XE8-501-840 SPR,FOR CUE
65 S0-3B6-000-400 SPRING
66 S0-SL2-4F2-450 SELECTOR
7
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
N Gold P Pink R Red
S Silver ST Titan Silver T Brown
V Violet W White Y Yellow
