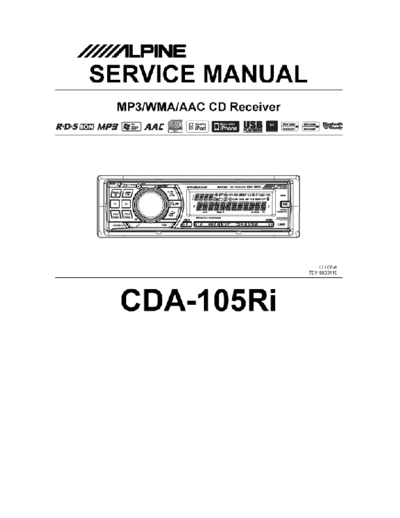

Image preview - the first page of the document
alpine_cda-105ri


>> Download alpine_cda-105ri documenatation <<

Text preview - extract from the document

 The following cautions will prevent accidents in the workplace and will ensure safe products.
*The symbols indicate caution is needed to prevent injuries and damage to property.
 The symbols and their meanings follow.


                         If you ignore this symbol and handle the product incorrectly or unsafely,
         Warning         serious injury or death may result.


                         If you ignore this symbol and handle the product incorrectly or unsafely,
         Caution         injury or only material damage may result.



*The following symbols indicate two levels of cautions.

         When you see this symbol, you have to be very careful.



         When you see this symbol, you have to follow the instructions there.




         Warning
         Do not look squarely into the laser light                            Fuse Caution
         coming from the pickup.                                              Always use a designated fuse.
         You may loose you sight.                                             Use of an incorrect fuse may result in a fire.



         Caution
         Do not allow wiring to be caught in the                              Battery Caution
         screw/chassis.                                                       Use the designated battery.
         If wiring is caught in the screw/chassis, it may                     Confirm the correct polarity and seat of the
         cause a short circuit, resulting in a fire.                          battery.
                                                                              An incorrect battery or an improperly connected
                                                                              or seated battery may result in a fire.

         High Temperature Caution                                             Designated Parts Caution
         Touching the heat sink may cause severe burns.                       Look up the part list and ensure that only
                                                                              designated parts are used to prevent problems or
                                                                              accidents.

         Reverse Power Supply Connections or                                  Wiring Caution
         Misconnections Caution                                               Ensure that the wiring is correct when rewiring to
         Reverse power supply connections or                                  prevent problems with ignition/breakdown.
         misconnections may cause ignition problems and
         smoke may result.

         Soldering Caution                                                    Wear Gloves
         Hot solder from solder splash may cause severe                       Wear gloves to prevent electrical shocks or injury
         burns.                                                               from the end face of the metal.
Extension Cable
                     *Always connect the Extension Cable when making checks of voltage and repair.


                                                                               (1) 01V39192S01
                                                                               (2) 01V35647S01
                                                                               (3) 01E40946S01
                                                        (1)
         FRONT-          CB401
         P.W.Board                                                           ESC-P.W.Board
                                                        CB6001
                                                                      CB6002

                                                               (2)
                        (3)

                                                         CH501

       CH1201
                                             CB500
                DP33U                                 MAIN-P.W.Board
Specifications
 < FM RADIO >
 Intermediate Frequency                            10.7
