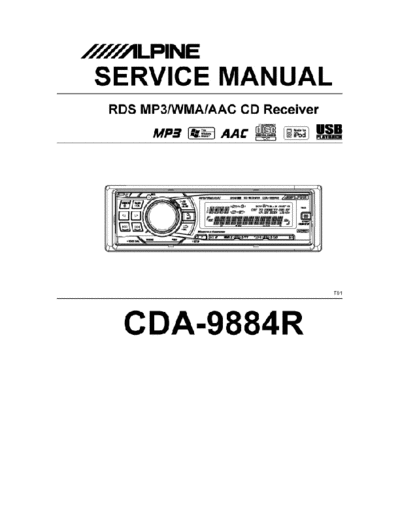

Image preview - the first page of the document
Alpine_CDA-9884R


>> Download Alpine_CDA-9884R documenatation <<

Text preview - extract from the document

 The following cautions will prevent accidents in the workplace and will ensure safe products.
*The symbols indicate caution is needed to prevent injuries and damage to property.
 The symbols and their meanings follow.


                         If you ignore this symbol and handle the product incorrectly or unsafely,
         Warning         serious injury or death may result.


                         If you ignore this symbol and handle the product incorrectly or unsafely,
         Caution         injury or only material damage may result.



*The following symbols indicate two levels of cautions.

         When you see this symbol, you have to be very careful.



         When you see this symbol, you have to follow the instructions there.




         Warning
         Do not look squarely into the laser light                            Fuse Caution
         coming from the pickup.                                              Always use a designated fuse.
         You may loose you sight.                                             Use of an incorrect fuse may result in a fire.



         Caution
         Do not allow wiring to be caught in the                              Battery Caution
         screw/chassis.                                                       Use the designated battery.
         If wiring is caught in the screw/chassis, it may                     Confirm the correct polarity and seat of the
         cause a short circuit, resulting in a fire.                          battery.
                                                                              An incorrect battery or an improperly connected
                                                                              or seated battery may result in a fire.

         High Temperature Caution                                             Designated Parts Caution
         Touching the heat sink may cause severe burns.                       Look up the part list and ensure that only
                                                                              designated parts are used to prevent problems or
                                                                              accidents.

         Reverse Power Supply Connections or                                  Wiring Caution
         Misconnections Caution                                               Ensure that the wiring is correct when rewiring to
         Reverse power supply connections or                                  prevent problems with ignition/breakdown.
         misconnections may cause ignition problems and
         smoke may result.

         Soldering Caution                                                    Wear Gloves
         Hot solder from solder splash may cause severe                       Wear gloves to prevent electrical shocks or injury
         burns.                                                               from the end face of the metal.
Packing Method View
                                                                                                                                 101
                             Hook Lock
                                                       Product

                                                                 Hook Lock
                                                                                                                                       C/N-LEAF
                                                                                                                                                          101-1
                                         Bottom Side




                            Hook Lock                                                                                                                     101-2
                                                                                      104                                                     QUICK
                                                             Hook Lock                                                                        REFERENCE
                                                                                                                                              GUIDE
                                                                                                                 105

                                 103



                                                                                                                 102




    101




                      Top Side




                                                                             102-1          102-2        102-3          102-4



                                                                                     X4                            X1           X1
                                                                                                    X1



                                                                             103                          105




                                                                                                                                 X1
                                                                                             X1
Packing Assembly Parts List

Model Code
CDA-9884R

NOTE:The part that has not PART NUMBER will not be supplied.

#####

        MODEL             Symbol No.             Parts No.                    Description
                        101-1                68-10334Z04       O/M-CDROM FLAT
                        101-2                68-09359Z58       C/N-QRG AOEU AOTA
                        102-1                03S60820Y16       SCR,MCH 5X8 ZN A
                        102-2                36A02449K01       CAP,RUBBER(A)
                        102-3                03A60836Y01       SCR,CUS 5X7 ZN A
                        102-4                03S70691Y11       SCR,B-T 1.7X8 ZB A
                        103                  15D00529K02       CASE,INNER
                        104                  15-09616Z02       CARRYING,CASE ASSY
                        105                  09-02252Z03       ASSY,ANIC-0007-03A
Specifications
 < FM RADIO >
 Intermediate Frequency                            10.7
