Service Manuals, User Guides, Schematic Diagrams or docs for : ALPINE Car Audio CDE-144BTI alpine_cde-144bti_sm
<< Back | HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

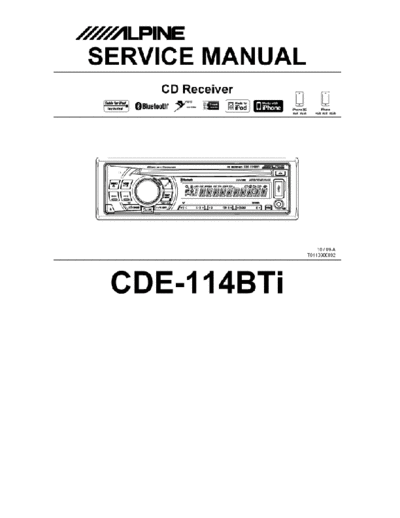

Image preview - the first page of the document
>> Download alpine_cde-144bti_sm documenatation <<
Text preview - extract from the document
The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result. If you ignore this symbol and handle the product incorrectly or unsafely, Caution injury or only material damage may result. *The following symbols indicate two levels of cautions. When you see this symbol, you have to be very careful. When you see this symbol, you have to follow the instructions there. Warning Do not look squarely into the laser light Fuse Caution coming from the pickup. Always use a designated fuse. You may loose you sight. Use of an incorrect fuse may result in a fire. Caution Do not allow wiring to be caught in the Battery Caution screw/chassis. Use the designated battery. If wiring is caught in the screw/chassis, it may Confirm the correct polarity and seat of the cause a short circuit, resulting in a fire. battery. An incorrect battery or an improperly connected or seated battery may result in a fire. High Temperature Caution Designated Parts Caution Touching the heat sink may cause severe burns. Look up the part list and ensure that only designated parts are used to prevent problems or accidents. Reverse Power Supply Connections or Wiring Caution Misconnections Caution Ensure that the wiring is correct when rewiring to Reverse power supply connections or prevent problems with ignition/breakdown. misconnections may cause ignition problems and smoke may result. Soldering Caution Wear Gloves Hot solder from solder splash may cause severe Wear gloves to prevent electrical shocks or injury burns. from the end face of the metal. Packing Method View 102 Hook Lock Product Hook Lock 106 Card Note BO 102-1 TT O M 104 Sid e Hook Lock 102-2 Hook Lock Quick Guide 103 105 102 101 107 Top Side 101-1 101-2 101-3 101-4 X4 X1 X1 X1 103 105 106 107 X1 X1 X1 X1 101-1 03S60820Y16 SCR,MCH 5X8 ZN A 101-2 36A02449K01 CAP,RUBBER(A) 101-3 03A60836Y01 SCR,CUS 5X7 ZN A 101-4 03S60824Y01 SCR,WEV 1.7X4 ZN A 102-1 68-10334Z22 O/M-CDROM BASIC 102-2 68-14470Z67 C/N-QRG AOEU DDA 103 15D00529K02 CASE,INNER 104 15D01798K04 CARRYING,CASE 105 09-14545Z02 ASSY,HARNESS POW 03A 106 09-14216Z02 ASSY,ANID-0092-02A 107 50-14386Z03 ASSY,LYS-M9750-FUL Extension Cable *Always connect the Extension Cable when making checks of voltage and repair. (1) 01V40948S01 (2) No Extension (3) No Extension FRONT-P.W.Board CB401 (2) (1) MECH CH500 CB705 CB704 MAIN-P.W.Board (3) A. Note for ELEP COAT removal operation 1. Mask the surrounding area to prevent HEXANE from flowing into those area (PC Card slot, the Flash, connector terminals, etc.) Masking tape Manufacturer : 3M Product Name : 243 Masking Tape (20 x 18) 2. Warm the PWB using the heat chamber (or a dryer). The ELEP COAT removal process can be started when the ELEP COAT of the parts to be exchanged becomes soft. < Condition > 1 ) Temperature setting : 60
