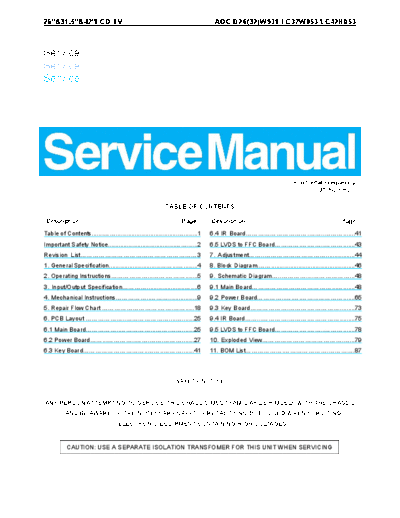

Image preview - the first page of the document
manual_servico_tv_lcd_aoc_d26w931


>> Download manual_servico_tv_lcd_aoc_d26w931 documenatation <<

Text preview - extract from the document
26&31.5&42LCD TV                                                                   AOC D26(32)W931/LC32W053/LC42H053



Service
Service
Service




                                                                                                                         Horizontal Frequency
                                                                                                                                 31~60 KHz

                                                            TABLE OF CONTENTS

 Description                                                        Page         Description                                                     Page

Table of Contents............................................................1   6.4 IR Board.......................................................41
Important Safety Notice...................................................2      6.5 LVDS to FFC Board.........................................43
Revision List.........................................................3          7. Adjustment.......................................................44
1. General Specification..................................................4      8. Block Diagram........................................................46
2. Operating Instructions............................................5           9. Schematic Diagram..........................................48
3. Input/Output Specification.........................................6          9.1 Main Board....................................................48
4. Mechanical Instructions...........................................9           9.2 Power Board..................................................65
5. Repair Flow Chart ..............................................18            9.3 Key Board.....................................................73
6. PCB Layout .......................................................25          9.4 IR Board........................................................75
6.1 Main Board.......................................................25          9.5 LVDS to FFC Board.........................................78
6.2 Power Board.....................................................27           10. Exploded View..............................................79
6.3 Key Board........................................................41          11. BOM List......................................................87




                                                                 SAFETY NOTICE


ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
          AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
                                    ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.


           CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING




                                                                            1
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics might create
shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person's body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)




                                                            2
                                  Revision List

Version   Release Date   Revision Instructions   Customer Model      TPV Model

                                                    D26W931       E269STNS4WB36N

                                                    D32W931       E329MTNS4WB36N
 A00       Jul.26,2010       Initial Release
                                                   LC32W053       E32AATNSW3B26N

                                                   LC42H053       E42AATNSW3B26N




                                           3
1. General Specification
Please refer to user manual.




                               4
2. Operating Instructions
Please refer to user manual.




                               5
3. Input/Output Specification
3.1 RGB Signal Input




                                  15 - Pin Color Display Signal Cable



       Pin No.         Description          Pin No.                     Description

          1             Red Video               9                         No Pin
          2            Green Video             10                       Sync Ground
          3             Blue Video             11                SDA(Remote Control)
          4      SCL(Remote Control)           12                 Serial Data for DDC
          5              Ground                13                         H-Sync.
          6       Red Video Ground             14                         V-Sync.
          7      Green Video Ground            15                Serial Clock for DDC
          8       Blue Video Ground



3.2 HDMI Digital Connector Pin Assignments




       Pin No.            Description               Pin No.                Description

          1              TMDS Data2+                    2               TMDS Data2 Shield
          3              TMDS Data2-                    4                 TMDS Data1+
          5            TMDS Data1 Shield                6                 TMDS Data1-
          7              TMDS Data0+                    8               TMDS Data0 Shield
          9              TMDS Data0-                    10                TMDS Clock+
         11            TMDS Clock Shield                12                TMDS Clock-
         13                  CEC                        14                     NC
         15                  SCL                        16                    SDA
         17            DDC/CEC Ground                   18                 +5V Power
         19             Hot Plug Detect




                                                    6
3.3 Compatible Mode Table
Analog RGB Input Signal Timing
D26W931/D32W931/LC42H053

                   Horizontal      Vertical      Sync Polarity          Presence             Screen Mode
  Dots
