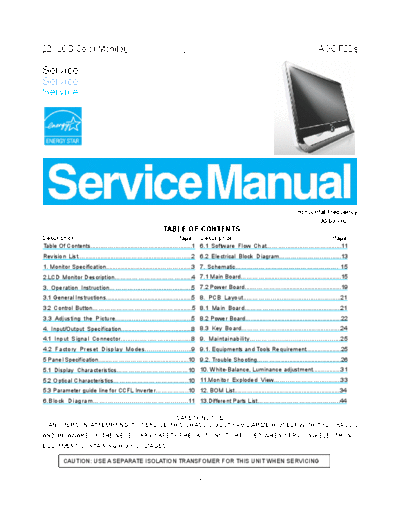

Image preview - the first page of the document
aoc_f22s


>> Download aoc_f22s documenatation <<

Text preview - extract from the document
22" LCD Color Monitor                                                                                                              AOC F22s

Service
Service
Service




                                                                                                                        Horizontal Frequency
                                                                                                                                30-83 kHz
                                                         TABLE OF CONTENTS
Description                                                        Page Description                                                    Page
Table Of Contents..........................................................1 6.1 Software Flow Chat.........................................11
Revision List.................................................................2 6.2 Electrical Block Diagram.................................13
1. Monitor Specification..................................................3 7. Schematic.................................................... 15
2.LCD Monitor Description........................................4 7.1 Main Board..........................................................15
3. Operation Instruction.............................................5 7.2 Power Board.......................................................19
3.1 General Instructions...................................................5 8. PCB Layout.....................................................21
3.2 Control Button....................................................5 8.1 Main Board.....................................................21
3.3 Adjusting the Picture..........................................5 8.2 Power Board.........................................................22
4. Input/Output Specification.......................................8 8.3 Key Board.......................................................24
4.1 Input Signal Connector.......................................8 9. Maintainability................................................25
4.2 Factory Preset Display Modes.........................9 9.1. Equipments and Tools Requirement.....................25
5 Panel Specification..................................................10 9.2. Trouble Shooting................................................26
5.1 Display Characteristics....................................10 10. White-Balance, Luminance adjustment.................31
5.2 Optical Characteristics......................................10 11.Monitor Exploded View...................................33
5.3 Parameter guide line for CCFL Inverter.................10 12. BOM List..............................................................34
6.Block Diagram...............................................11 13.Different Parts List..........................................44

                                     SAFETY NOTICE
  ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC
EQUIPMENT CONTAINING HIGH VOLTAGES.

         CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING


                                                                          1
22" LCD Color Monitor                                             AOC F22s
                               Revision List
     Revision      Date        Revision History       TPV Model

                                                   TIRMABNBW1A1NNE
       A00      Mar.-10-2009     Initial release
                                                   TIRMABNDW6A4NNE




                                       2
22" LCD Color Monitor                                                                                        AOC F22s
1. Monitor Specifications
                     Model Name             F22
                     Driving system         TFT Color LCD
                     Viewable Image Size 548mm diagonal
                     Pixel pitch            0.248mm(H) x 0.248mm(V)
     LCD Panel
                     Video                  R, G, B Analog interface & Digital Interface
                     Separate Sync.         H/V TTL
                     Display Color          16.7M Colors
                     Dot Clock              148.5 MHz
                     Horizontal scan range 30 kHz - 80 kHz
                     Horizontal scan
                                            477.5mm
                     Size(Maximum)
                     Vertical scan range    55 Hz - 75 Hz
                     Vertical scan
                                            268.5mm
                     Size(Maximum)
                     Optimal preset
                                            1920 x 1080 (60 Hz)
                     resolution
     Resolution
                     Highest preset
                                            1920 x 1080 (60 Hz)
                     resolution
                     Plug & Play            VESA DDC2B/CI
                     Input Connector        D-Sub 15pin & DVI-D
                     Input Video Signal     Analog: 0.7Vp-p(standard), 75 OHM, Positive & DVI-D Digital Interface (TMDS)
                     Power Source           100-240VAC, 50/60Hz
                                            Active < 60 W
                     Power Consumption
                                            Standby < 1 W
                     Connector Type         15-pin Mini D-Sub & DVI-D
                     Signal Cable Type      Detachable
                     Dimensions & Weight:
                     Height (with base)     379 mm
     Physical
   Characteristics   Width                  525.5 mm
                     Depth                  80.9 mm
                     Weight (monitor only) 4.60 kg
                     Weight (with
                                            6.5 kg
                     packaging)
                     Temperature:
                     Operating              0
