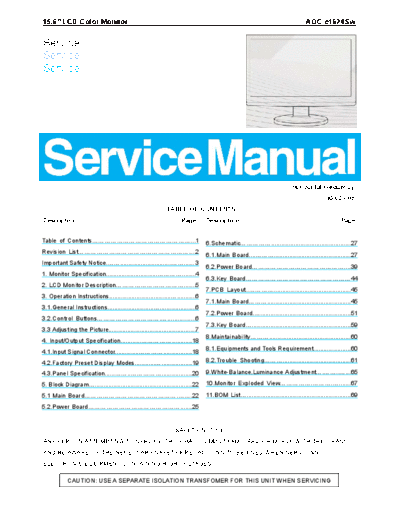

Image preview - the first page of the document
AOC+e1620Sw


>> Download AOC+e1620Sw documenatation <<

Text preview - extract from the document
15.6" LCD Color Monitor                                                                                                            AOC e1620Sw

Service
Service
Service




                                                                                                                            Horizontal Frequency
                                                                                                                                             30-60 kHz
                                                              TABLE OF CONTENTS
Description                                                          Page        Description                                                         Page


Table of Contents...................................................1            6.Schematic.............................................................27
Revision List..........................................................2         6.1.Main Board..........................................................27
Important Safety Notice................................................. 3
                                                                                 6.2.Power Board.................................................39
1. Monitor Specification..................................................4
                                                                                 6.3.Key Board....................................................44
2. LCD Monitor Description........................................5
                                                                                 7.PCB Layout...........................................................45
3. Operation Instructions..................................................6
                                                                                 7.1.Main Board..........................................................45
3.1.General Instructions...................................................6
                                                                                 7.2.Power Board.........................................................51
3.2.Control Buttons..................................................6
                                                                                 7.3.Key Board.............................................................59
3.3 Adjusting the Picture...................................................7
                                                                                 8.Maintainability........................................................60
4. Input/Output Specification.......................................18
                                                                                 8.1.Equipments and Tools Requirement......................60
4.1.Input Signal Connector...........................................18
4.2.Factory Preset Display Modes.................................19              8.2.Trouble Shooting.................................................61

4.3.Panel Specification...............................................20         9.White-Balance,Luminance Adjustment..................65

5. Block Diagram............................................................22   10.Monitor Exploded View....................................67

5.1 Main Board.....................................................22            11.BOM List................................................................69
5.2.Power Board....................................................25


                                                                  SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

            CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

                                                                             1
                                                  Revision List
Note: Check updating contents, please input keywords in the "Find box" of PDF and click "OK". After that, it will
automatically locate to the updating contents.
          Version         Release Date               Revision History                TPV Model Name
            A00            Apr.15, 2010                Initial release              T692M5NCYHGGNN
                                                                                    T692M5NCYHACNN
            A01            Sep.30, 2010              Add new models                 T692M5NCYHACNN
                                                                                    T692M5NCYHPUNN
                                                                                    T6AMSP2EYHPUNN
            A02            Nov.11,2010               Add new models
                                                                                    T692M52TYH1RNN
                                              Add new models, lead in the
                                              new main board[PCB P/N:
                                              715G3529 1]
            A03            Dec.16,2010        Update as below:                      T6AMSP2EYHGGNN
                                              Block Diagram
                                              Schematic
                                              BOM
                                              Add new models, lead in the
                                              new converter board[PCB P/N:
                                                                                    T6A7SP2EYHGGNN
                                              715G4013P01005004I]
                                              Update as below:
            A04            Jan.20,2011
                                              Block Diagram
                                              Schematic
                                                                                    T6A7SP2EYHPUNN
                                              PCB Layout
                                              BOM
            A05            Jan.27,2011                Add new model                 T6AMSP2EYHACNN
                                                                                    T6AMSP2EYHRMNN
            A06            Mar.29.2011                Add new model
                                                                                    T6B2SP2EYHGGNN
                                              Add new models, lead in the
                                              new main board[PCB P/N:
                                              715G4734M02000004I] and
                                              power board[PCB P/N:
            A07            Nov.08.2011        715G3189P02LED001R]                   T6BMSR2EYHGGNN
                                              Update as below:
                                              Block Diagram
                                              Schematic
                                              PCB Layout




                                                          2
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.


WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,
fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person's body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)




                                                            3
1. Monitor Specification




                           4
2. LCD Monitor Description
The LCD Monitor will contain a main board, an adapter board, a converter board and a key board which house the
flat panel control logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.



                                         Monitor Block Diagram




                                                                              Flat Panel and
                                         LED Drive.
                Converter Board                                               LED backlight




                Adapter Board                                       Main Board                 RS232 Connector
                                                                                               For white balance
                                                                                               adjustment in

                                                                  Key board                    factory mode



                                                                                                 Video signal, DDC
                   AC-IN                                                       HOST Computer
                100V~240V




                                                              5
3. Operation Instructions
3.1 General Instructions

Press the power button to turn the monitor on or off. The other control knobs are located at front panel of the monitor.

By changing these settings, the picture can be adjusted to your personal preferences.

3.2 Control Buttons




Power
Press the Power button continuously to turn off the monitor.
4:3 or wide image ratio hot key
When there is no OSD, press > continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or
input signal resolution is wide format, the hot key is disable to adjust. )
Eco Mode / <
Press the Eco key continuously to select the Eco mode of brightness when there is no OSD (Eco mode hot key
may not be available in all models).
Auto / Exit
When the OSD is closed, press Auto button will be auto configure hot key function.




                                                             6
3.3 Adjusting the Picture
OSD Settings




1) Press the MENU-button to activate the OSD window.
2) Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button
to activate sub-menu . Once the desired function is highlighted, press MENU-button to activate it.
3) Press < or > to change the settings of the selected function. Press < or > to select another function in sub-menu.
Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is
off and then press power button to turn the monitor on.




Notes:
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to
adjust.
3) One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.




                                                            7
8
9
10
11
12
13
14
15
16
17
4. Input/Output Specification
4.1 Input Signal Connector
   D-Sub 15pin Connector




           Pin Number           15-Pin Side of the Signal Cable

                        1       Video-Red

                        2       Video-Green

                        3       Video-Blue

                        4       N.C.

                        5       Detect Cable

                        6       GND-R

                        7       GND-G

                        8       GND-B

                        9       +5V

                        10      Ground

                        11      N.C.

                        12      DDC-Serial data

                        13      H-sync

                        14      V-sync

                        15      DDC-Serial clock




                                             18
4.2 Factory Preset Display Modes




                                   19
4.3. Panel Specification
M156B1-L01 is a 15.6" wide TFT Liquid Crystal Display module with white LED(1PCS Lightbar, LED-3020 96PCS)
Backlight unit and 30pin 1ch-LVDS interface. This module supports 1366 x768 WXGA mode and can display up to
16.7M colors. The conventer module for Backlight is not built in.
4.3.1 General Feature




4.3.2 Optical Characteristics




                                                         20
4.3.3 Electrical Characteristics
TFT LCD MODULE                               Ta = 25
