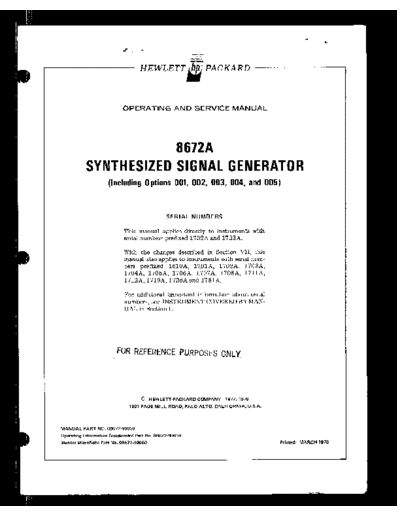

J. +
HEWLETT PACKARD
OPERATING AND SERVICE MANUAI-
8672A
SYNTHESIZEDSIGNAL GENERATOR
(Including Options 001, 002, 003, 004, and 005)
SERIAL NUMBERS
This manual applies directly to instruments with
serial numbers prefixed 1732A and 1733A.
With the changes described in Section VU, this
manual also applies to instruments with serial num-
bers prefixed 1610A, 17,01A, 1702A, 1703A,
1704A, 1705A, 1706A, 1707A, 170&k, 1711A,
1712A, 1719A. 1725A and 1731A.
For additional important information about serial
numbers, see INSTRUMENT COVERED BY MAN-
IJAL in Section I.
FOR REFERENCE fWRPOSES ONLY
COPYRIGHT AND DISCLAIMER NOTICE
Copyright - Agilent Technologies, Inc. Reproduced with the permission of Agilent
Technologies Inc. Agilent Technologies, Inc. makes no warranty of any kind with regard
to this material including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. Agilent Technologies, Inc. is not liable for errors
contained herein or for incidental or consequential damages in connection with the
furnishing, performance, or use of this material or data.
SYNTHESIZED SIGNAL GENERATOR
This supplement contains important information for correcting manual erron and for adapting the manual to
instruments containing improvemenh made after the printing of the manual.
To use this supplement:
Make all ERRATA corrections
Make all. appropriate serial number related changes indicated in the tables below.
II serja, Prefix OI NUrnbCI- ML%kC Mmual mange* - - SerialPreilv or Number - Make Manual Chn~ea -
1SOlA 1 1845A ,l through 9
1816A 1, 2 1905A 1 through 10
182lA 1, z3 1906A 1 through 11
1822A 1 through 4 1913A 1 through 12
183M 1 through 5 1914A 1 through 13
1833A 1. through, 6 1930A 1 through 14
1854A 1 through 7 1940A 1 through 15
184I.A 1 through 8 b 2002A 1 through 16
b NEWITEM
ERRATA
Page 1-3, Table 1.1 Specifications (2 of 4):
Add the following information to footnote 6:
for Option 008, +8 dBm to -120 dBm from ~15
