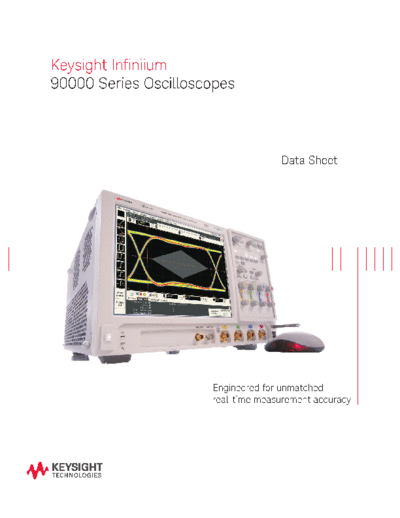

Image preview - the first page of the document
![5989-7819EN Infiniium 90000A Series Oscilloscopes - Data Sheet c20141005 [36]](/pics/5c217440722fa.gif)
>> Download 5989-7819EN Infiniium 90000A Series Oscilloscopes - Data Sheet c20141005 [36] documenatation <<
Text preview - extract from the document
Keysight Infiniium
90000 Series Oscilloscopes
Data Sheet
Engineered for unmatched
real-time measurement accuracy
Why choose Keysight oscilloscopes for your toughest high-speed
measurement challenges?
As an engineer you're no stranger to tough challenges that
help you exceed your customer's needs and expectations.
Deploying your next design successfully is even more
difficult with today's high speed technologies. Data signal
eye openings become smaller and measurement error
from your oscilloscope becomes less tolerable. Keysight
Technologies, Inc. is committed to providing the best
measurement solutions for these critical challenges.
The Keysight Infiniium 90000 Series oscilloscopes are
engineered to give you unmatched real-time measurement
accuracy so you can:
1. Use your jitter budget in your design, not on your
oscilloscope.
2. Pass today's demanding compliance tests more
quickly.
3. Debug your toughest designs with confidence.
90000A Series Infiniium oscilloscopes
Model Real-time Maximum sampling Standard memory Maximum memory Noise floor at
bandwidth on 4 ch rate on 4 ch 50 mV/div
91304A 13 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.73 mVrms
91204A 12 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.45 mVrms
90804A 8 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.15 mVrms
90604A 6 GHz 20 GSa/s on 4 ch* 20 Mpts on 4 ch 1 Gpts on 4 ch 0.98 mVrms
90404A 4 GHz 20 GSa/s on 4 ch* 20 Mpts on 4 ch 1 Gpts on 4 ch 0.79 mVrms
90254A 2.5 GHz 20 GSa/s on 4 ch* 20 Mpts on 4 ch 1 Gpts on 4 ch 0.64 mVrms
*DSA model numbers come standard with 50 Mpts of memory on 4 ch.
How much time span can I capture?
Sampling Rate 20 Mpts of 50 Mpts of 100 Mpts of 200 Mpts of 500 Mpts of 1 Gpts of
memory memory memory memory memory memory
40 GSa/s 500 s 1.25 ms 2.5 ms 5.0 ms 12.5 ms 25.0 ms
20 GSa/s 1 ms 2.5 ms 5.0 ms 10.0 ms 25.0 ms 50.0 ms
Note: time span capture = memory depth x 1/ sampling rate
2
Engineered for unmatched real-time measurement accuracy.
Use your jitter budget in your design, not on your oscilloscope.
Keysight's Infiniium 90000 Series oscilloscopes offer the industry's lowest noise floor and most accurate real-time
jitter measurements available on scopes of this bandwidth class. Complete with full-bandwidth probing solutions and
hardwareaccelerated de-embedding and equalization techniques, Keysight oscilloscopes are the best oscilloscope solution
for today's demanding high-speed measurements.
The industry's lowest noise The industry's deepest We add full bandwidth probing
floor memory and accurate de-embedding
Leveraging the company expertise in With 1 Gbyte of memory, low- and equalization software
RF design, Keysight has invested in key frequency jitter components can be The performance of Keysight's
technology blocks like our proprietary more quickly resolved in a single oscilloscopes is matched by the
Faraday caged front end to significantly measurement. Statistical accuracy is superiority of our probing, de-embedding
reduce our inherent scope noise floor. improved with more data collection. and equalization offerings. Maintain full
The result: the lowest noise floor Keysight's integrated deep memory bandwidth performance to the probe tip
available on any real-time oscilloscope remains responsive and allows more with our InfiniiMax probing solutions.
from 2.5 GHz to 12 GHz. comprehensive testing, supporting Render waveforms anywhere in the
pattern lengths up to PRBS23 for digital serial link with our hardware
accurate transmitter and receiver accelerated N5465A InfiniiSim Waveform
results. Transformation Toolset. Configurable
system modeling allows you to remove
the deleterious effects of unwanted
channel elements, simulate waveforms
with channel models inserted, view
waveforms in physically unprobeable
locations, and compensate for loading of
probes and fixtures. The N5461A Serial
Data Equalization software allows you
to model equalization techniques in real
time.
3
Engineered for unmatched real-time measurement accuracy.
Pass today's demanding compliance tests more quickly.
Offering the industry's widest range of available
compliance applications to provide fast setup for complete,
automated compliance and margin testing and reporting,
the Keysight 90000 Series scopes have become the go-to
tool for test houses worldwide. Our experts serve on the
industry standards committees, and our oscilloscopes
are certified on today's high speed serial data standards.
Plus our 1G memory supports real-time testing to pattern
lengths of PRBS23 to stress your design to the max.
Choose from a wide range
of complete compliance
applications
Choose from the industry's widest Put Keysight's experts on your Free up valuable engineering
range of complete applications for
the Infiniium 90000 Series to ensure team resources
compliance to the leading industry Keysight's measurement experts sit Set-up wizards combined with
standards, including SATA, PCI on the industry standards committees intelligent test filtering make it simple
