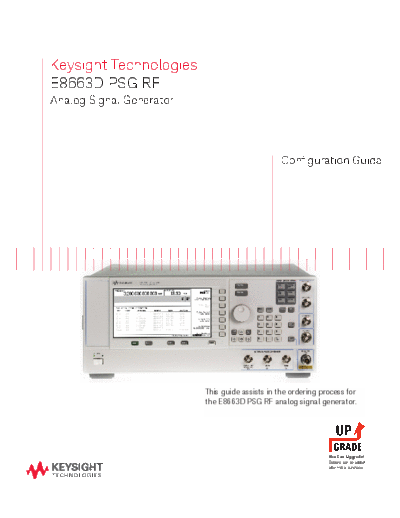

Image preview - the first page of the document



>> Download 5990-4137EN English _ 2014-08-03 _ PDF 499 KB c20140824 [6] documenatation <<

Text preview - extract from the document

Keysight Technologies
E8663D PSG RF
Analog Signal Generator




                                                 Configuration Guide




                          This guide assists in the ordering process for
                          the E8663D PSG RF analog signal generator.




                                                               You Can Upgrade!
                                                               Options can be added
                                                               after initial purchase.
Standard product includes installation guide,
electronic documentation set (CD-ROM), adapters,
and country specific power cord.

Keysight PSG RF Analog Signal Generator Options
Step 1. Choose a frequency range (required)
 Ordering number                Description                                        Purpose
 E8663D-503                     Frequency range from 100 kHz to 3.2 GHz            Selects the maximum frequency of the signal generator
 E8663D-509                     Frequency range from 100 kHz to 9.0 GHz            Selects the maximum frequency of the signal generator



Step 2. Choose order convenience bundle
 Ordering number                Description                                  Purpose                                            Requires
 E8663D-063                     E8663B backwards compatibility option Provides all the same options included in the
                                bundle - 1EU, 1E1, 1EH, UNX, UNT      E8663B



Step 3. Choose modulation
 Ordering number                Description                                  Purpose                                            Requires
 Standard                       CW and pulse modulation                      Generates continuous wave (CW) signals and pulse
                                                                             modulation (150 ns minimum pulse width)
 E8663D-UNT                     AM, FM, phase modulation, and LF             Adds analog modulated signals
                                output
 E8663D-UNW                     Narrow pulse modulation                      Generates pulse modulated signals
                                                                             (20 ns minimum pulse width)
 E8663D-1SM 1                   Scan modulation                              Provides deep AM modulation                        E8663D-UNT



Step 4. Choose attenuator
 Ordering number               Description                                         Purpose
 Standard                      No step attenuator                                  Generates signals with output power levels ranging from
