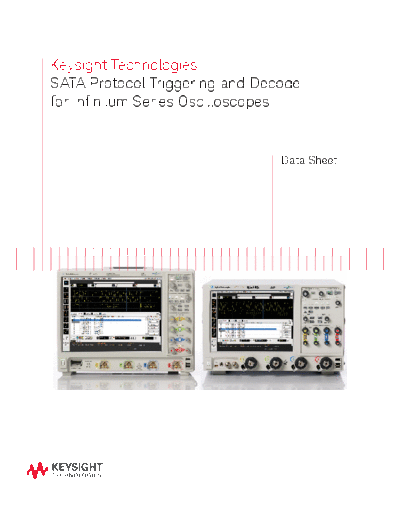

Image preview - the first page of the document



>> Download 5990-4627EN SATA Protocol Triggering and Decode - Data Sheet c20140813 [8] documenatation <<

Text preview - extract from the document

Keysight Technologies
SATA Protocol Triggering and Decode
for Infiniium Series Oscilloscopes


                                Data Sheet
SATA


SATA (Serial Advanced Technology Attachment) Serial bus is       Extend your scope capability with the Keysight Technologies, Inc.
an interface used to connect ATA hard drives to a computer's     SATA triggering and decode application. This application
motherboard. However, since these protocols transfer bits        makes it easy to debug and test designs that include SATA
serially, using a traditional oscilloscope has limitations.      buses using your Infiniium Series oscilloscope.
Manually converting captured 1's and 0's to protocol requires
significant effort, can't be done in real-time, and includes
