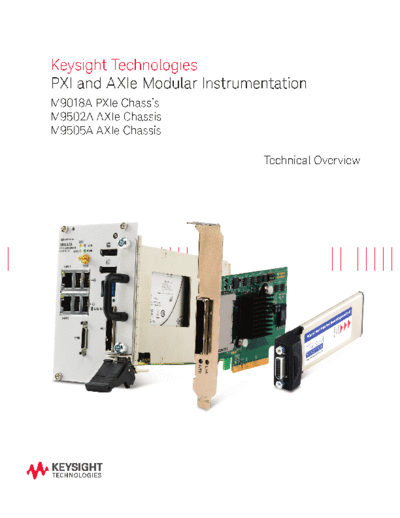

Image preview - the first page of the document



>> Download 5990-7632EN PXI and AXIe Modular Instrumentation - Technical Overview c20140916 [9] documenatation <<

Text preview - extract from the document

Keysight Technologies
PXI and AXIe Modular Instrumentation
M9018A PXIe Chassis
M9502A AXIe Chassis
M9505A AXIe Chassis

                             Technical Overview
02 | Keysight | PXI and AXIe Modular Instrumentation - M9018A PXIe Chassis - M9502A AXIe Chassis - M9505A AXIe Chassis - Technical Overview




   Overview

                This personal computer and controller technical
                note has been prepared to provide the system
                designer with a list of tested computers that are
                compatible with Keysight Technologies, Inc. PXI and
                AXIe chassis. Both AXIe and PXIe chassis are
                compatible with each computer unless otherwise
                noted. The testing in this guide covers both the PCIe
                link and enumeration of the chassis. Compatibility
                can be impacted by many factors including
                computer BIOS and signal path within the computer
                                                                                      Figure 1. M9045B PCIe ExpressCard Adapter and Y1200B PCIe Cable.
                and cable.



                Keysight Technologies modular chassis
                tested:
