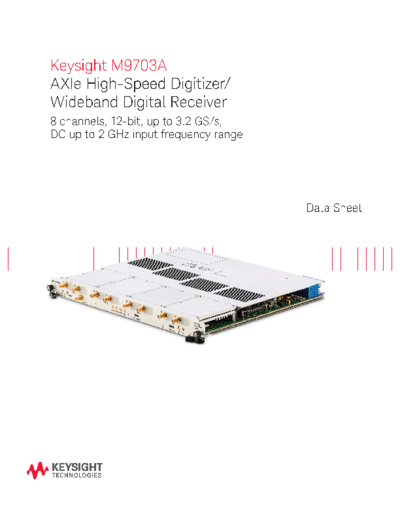

Keysight M9703A
AXIe High-Speed Digitizer/
Wideband Digital Receiver
8 channels, 12-bit, up to 3.2 GS/s,
DC up to 2 GHz input frequency range




                                       Data Sheet
Overview

Introduction
The Keysight Technologies, Inc. M9703A is a very fast
versatile DC-coupled 12-bit wideband digital receiver/
digitizer, providing exceptional measurement fidelity over
multiple phase coherent channels. Based on the AXIe
standard, offering eight acquisition channels in a single-slot
card, it provides excellent channel density and flexible
scalability. These features allow the implementation of              Product features
a large number of high dynamic range, phase-coherent
channels in a small volume, making the M9703A high-speed
