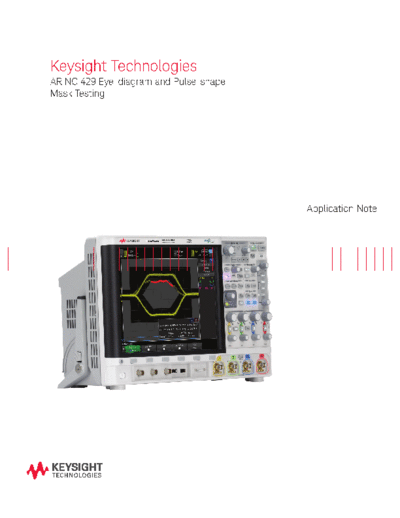

Image preview - the first page of the document



>> Download 5990-9325EN ARINC 429 Eye-diagram and Pulse-shape Mask Testing - Application Note c20140613 [9] documenatation <<

Text preview - extract from the document

Keysight Technologies
ARINC 429 Eye-diagram and Pulse-shape
Mask Testing




                                        Application Note
Introduction

   Eye-diagram mask testing is used in a broad range of today's
   serial bus applications. An eye-diagram is basically an overlay of
   all bits captured by the scope to show when bits are valid and not
   valid. This provides a composite picture of the overall quality of a
   system's physical layer characteristics, which includes amplitude
   variations possibly due to transmission line affects, reflections,
   system noise, over-shoot, ringing, signal edge timing, and jitter.

   Eye-diagram and pulse-shape pass/fail mask testing can be
   performed on differential ARINC 429 signals using a Keysight
   Technologies, Inc. 3000, 4000 or 6000 X-Series oscilloscope
   licensed with the DSOX3AERO/DSOX4AERO/DSOX6AERO
   triggering and decode option (MIL-STD 1553 & ARINC 429), along
   with the DSOX3MASK/DSOX4MASK/DSOX6MASK mask test
   option. Various ARINC 429 mask files can be downloaded from
   Keysight's website at no charge. Save the appropriate ARINC 429
   mask files (based on baud rate) to your personal USB memory
   stick and then insert the memory stick into the scope's front-
   panel USB port. The following ARINC 429 mask files are available:
