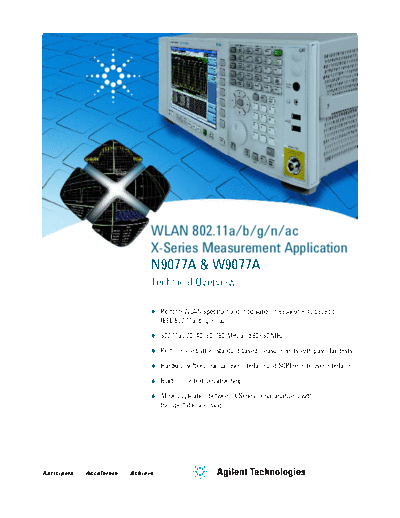

Image preview - the first page of the document



>> Download 5990-9642EN N9077A & W9077A WLAN X-Series Measurement Application - Technical Overview c20140609 [19] documenatation <<

Text preview - extract from the document

WLAN 802.11a/b/g/n/ac
X-Series Measurement Application
N9077A & W9077A
Technical Overview

 Perform WLAN spectrum and modulation measurements based on
 IEEE 802.11a/b/g/n/ac
 802.11ac 20/40/80/160 MHz and 80+80 MHz
 Perform one-button, standard-based measurements with pass/fail tests
 Hardkey/softkey manual user interface and SCPI remote user interface
 Built-in, context-sensitive help
 Move application between X-Series signal analyzers with
 transportable licensing
WLAN 802.11a/b/g/n/ac Measurement Application
The WLAN measurement applica-             eliminating measurement switching       nal analysis that ensures repeatable
tion transforms the X-Series              and reconfiguration for disparate       results and measurement integrity
signal analyzers into IEEE 802.11         bursts.                                 so you can leverage your test system
standard-based WLAN transmitter                                                   software through all phases of prod-
testers by adding fast, one-button        The Agilent X-Series is an evolution-   uct development. In addition to fixed,
RF conformance measurements that          ary approach to signal analysis that    perpetual licenses for our X-Series
will help you design, evaluate, and       spans instrumentation, measure-         measurement applications, we also
manufacture your WLAN transmit-           ments, and software. The X-Series       offer transportable licenses which
ter. The software's capabilities are      analyzers, with upgradeable CPU,        can increase the value of your invest-
further enhanced because it is closely    memory, disk drives, and I/O ports,     ment by allowing to you transport
aligned with the IEEE standards--         enable you to keep your test assets     the application to multiple X-Series
including a/b/g/n/ac as well as           current and extend instrument           analyzers. The WLAN measurement
j/p/a-turbo--allowing you to stay         longevity. Proven algorithms, 100%      application is just one in a common
on the leading edge of design and         code-compatibility, and a common UI     library of more than 25 measurement
manufacturing challenges. A list          across the X-Series create a consis-    applications.
sequence capability speeds testing by     tent measurement framework for sig-




                                                                                  Real-time spectrum
  Choosing Between X-Series Applications                                          analysis for WLAN
  and 89600 VSA Software                                                          802.11ac
  X-Series measurement applications provide embedded format-specific, one-
  button measurements for X-Series analyzers. With fast measurement speed,        Adding real-time spectrum analysis to
  SCPI programmability, pass/fail testing and simplicity of operation, these      a PXA or MXA signal analyzer
                                                                                  addresses the measurement chal-
  applications are ideally suited for design verification and manufacturing.
                                                                                  lenges associated with dynamic
  89600 VSA software is a comprehensive set of tools for demodulation and         RF signals such as bursted packet
  vector signal analysis. These tools enable you to explore virtually every       transmissions of WLAN, and to
  facet of a signal and optimize your most advanced designs. Use the 89600        identify interference caused by vari-
  VSA software with a variety of Agilent hardware platforms to pinpoint the       ous signals in the ISM (2.4 or 5 GHz)
  answers to signal problems in R&D.                                              bands.

                     www.agilent.com/find/89600
