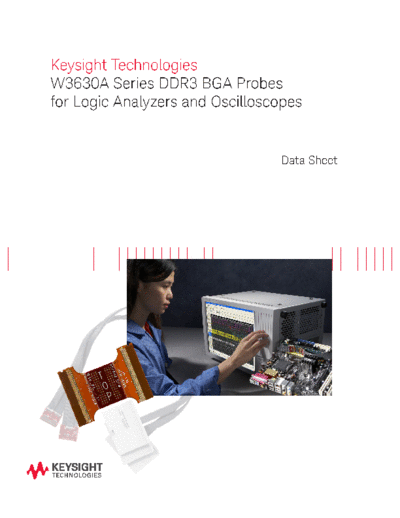

5990-3179EN W3630A Series DDR3 BGA Probes for Logic Analyzers and Oscilloscopes - Data Sheet c20140815 [14]


>> Download 5990-3179EN W3630A Series DDR3 BGA Probes for Logic Analyzers and Oscilloscopes - Data Sheet c20140815 [14] documenatation <<

Text preview - extract from the document
Keysight Technologies
W3630A Series DDR3 BGA Probes
for Logic Analyzers and Oscilloscopes


                                 Data Sheet
Introduction

     The W3630A series DDR3 BGA probes enable probing of embedded memory DIMMs
     directly at the ball grid array with Keysight Technologies, Inc. logic analyzers and
     oscilloscopes.

     The Keysight W3630A series DDR3 BGA probes for logic analyzers and oscilloscopes
     enable viewing of data traffic on industry standard DDR3 DRAMs with the Keysight
     16900 Series and U4154A logic analysis systems and Infiniium 9000 and 90000 Series
     oscilloscopes.
The DDR3 BGA Probe Advantage

 Features                                                              Benefits

 Connects directly to the DDR3 BGA balls.                              Eliminates reflections from mid-bus probing methods. Also
                                                                       eliminates board space and trace routing required for connector
                                                                       probing methods.
 Supports:
