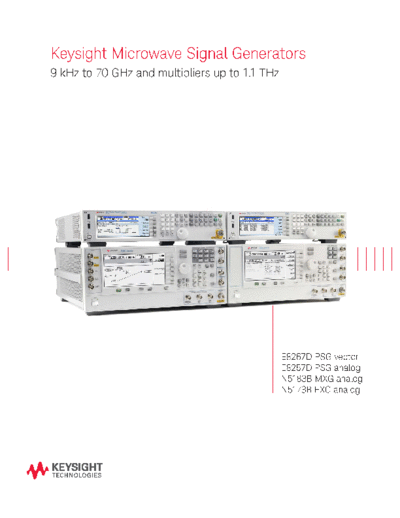

Keysight Microwave Signal Generators
9 kHz to 70 GHz and multipliers up to 1.1 THz




                                                E8267D PSG vector
                                                E8257D PSG analog
                                                N5183B MXG analog
                                                N5173B EXG analog
02 | Keysight | Microwave Signal Generators - Brochure




Summary of Key Speciications
 Speciications                                           PSG vector          PSG analog          MXG analog        EXG analog
 Model number                                            E8267D              E8257D              N5183B            N5173B
 Frequency range (min. to max.)                          100 kHz to 44 GHz   100 kHz to 70 GHz   9 kHz to 40 GHz   9 kHz to 40 GHz
 Frequency switching (list mode)                         9 ms                9 ms                600 s             600 s
 Sweep mode                                              Step, list, ramp    Step, list, ramp    Step, list        Step, list
 Output power (at 20 GHz)
