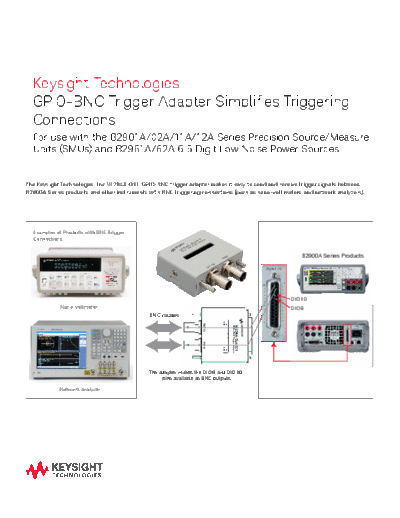

5991-3542EN GPIO-BNC Trigger Adapter Simplifies Triggering Connections - Flyer c20141001 [2]


>> Download 5991-3542EN GPIO-BNC Trigger Adapter Simplifies Triggering Connections - Flyer c20141001 [2] documenatation <<

Text preview - extract from the document
  Keysight Technologies
  GPIO-BNC Trigger Adapter Simplifies Triggering
  Connections
  For use with the B2901A/02A/11A/12A Series Precision Source/Measure
  Units (SMUs) and B2961A/62A 6.5 Digit Low Noise Power Sources


The Keysight Technologies, Inc N1294A-031 GPIO-BNC trigger adapter makes it easy to send and receive trigger signals between
B2900A Series products and other instruments with BNC triggering connections (such as nano-volt meters and network analyzers).




  Examples of Products with BNC Trigger
  Connections


                                                                                                      B2900A Series Products




                                                                                                  DIO 10
            Nano-voltmeter                                                                        DIO 9
                                             BNC cables




                                             The adapter makes the DIO 9 and DIO 10
                                                  pins available as BNC outputs

            Network analyzer
02 | Keysight | GPIO-BNC Trigger Adapter Simplifies Triggering Connections - Application Brief




Keysight B2900A Series of Precision                                                       Supplemental Characteristics for
Instruments                                                                               Triggering
The Keysight B2901A/02A/11A/12A precision source/measure
