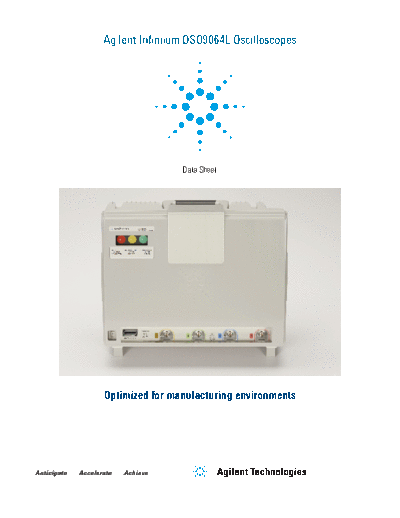

Image preview - the first page of the document
![5991-3770EN DSO9064L Oscilloscopes - Data Sheet c20140122 [13]](/pics/5c4d6cd340a09.gif)
>> Download 5991-3770EN DSO9064L Oscilloscopes - Data Sheet c20140122 [13] documenatation <<
Text preview - extract from the document
Agilent Infiniium DSO9064L Oscilloscopes
Data Sheet
Optimized for manufacturing environments
Agilent Infiniium DSO9064L oscilloscopes
The Agilent Infiniium DSO9064L oscilloscope provides measurements optimized for manufacturing applications. It incorporates the
Infiniium 9000 Series oscilloscope's software, hardware, and IO functionality with additional modifications to make it more suitable
for manufacturing applications.
o Can be controlled programmatically via USB or Ethernet.
o Full manual control is available using an external monitor with a mouse and keyboard.
o Large front-panel LEDs provide critical status.
o Reset power switch position eliminates the potential of accidental power cycles.
o Absence of front-panel controls normally found on Infiniium 9000 Series oscilloscopes eliminates the possibility of operators ac-
cidentally changing scope settings.
Analog sample rate Standard memory
Model Analog bandwidth 4-channel/2-channel 4-channel/2-channel Scope channels
DSO9064L 600 MHz 10 GSa/s/20 GSa/s 20 Mpts/40Mpts 4
2
DSO9064A versus DSO9064L
Deciding between a DSO9064A and a DSO9064L? Here's a table that will help.
DSO9064A DSO9064L
Primary use model R&D bench Manufacturing
Bandwidth 600 MHz 600 MHz
Max sample rate 10 GSa/s 20 GSa/s
LAN connectivity indicator on front panel No Yes - LED
Trigger indicator on front panel Yes - LED Yes - LED
Application status LED on front panel No Yes
Support for 50 and 1 M probes Yes Yes
Integrated display Yes No
Support for external monitor Yes Yes
Front panel control with knobs/buttons Yes No
Probe detection Auto Requires user to set
AutoProbe interface to support active probes Yes No. Supports BNC connection and
passive probes (no support for
active probes)
Passive probes ship standard Yes (qty. 4) No, must be ordered separately
Keyboard, mouse, styles, and accessory pouch included Yes No
Power cord options Worldwide options by country US and China
3
Agilent Infiniium DSO9064L oscilloscopes
AUX OUT for calibration
Built-in 10-MHz reference in/out port
synchronizes multiple measurement
instruments in a system
XGA and DVI video output port lets you
connect to an external monitor
Standard 10/100/1000 bT LAN port
USB 2.0 host port
Trig in/out ports provide an easy way
to synchronize your scope to other
instruments
Optional removable SSD shown.
4
Infiniium DSO9064L performance characteristics
Vertical: scope channels DSO9064L
