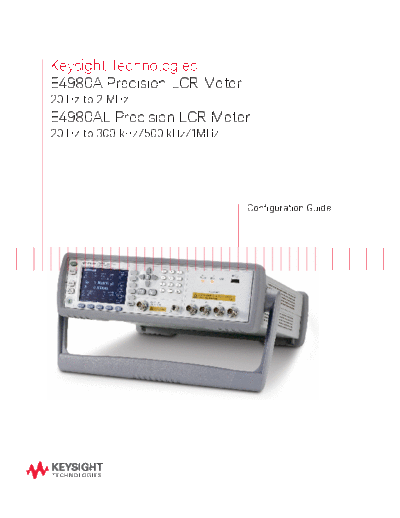

Image preview - the first page of the document



>> Download E4980A Precision LCR Meter_252C 20 Hz to 2 MHz - Configuration Guide 5989-8321EN c20140717 [12] documenatation <<

Text preview - extract from the document

Keysight Technologies
E4980A Precision LCR Meter
20 Hz to 2 MHz
E4980AL Precision LCR Meter
20 Hz to 300 kHz/500 kHz/1MHz




                                Configuration Guide
E4980A/E4980AL Configuration Guide Introduction
This guide helps you to define the options and accessories for the E4980A and E4980AL precision LCR meters.

The E4980A is the model number of the 20 Hz to 2 MHz frequency range LCR meter. The E4980AL is the model number of
the low frequency options (20 Hz to 300 kHz/500 kHz/1 MHz) of the E4980A. This is a distributor preferred product and the
model number E4980AL is used only for ordering and shipment purpose. The actual unit of the E4980AL is labeled as the
E4980A (not E4980AL), hence for Keysight Technologies, Inc. service and post-sales support, refer to the model number
E4980A.

For configuring options, see this page for the E4980A, and page 8 for the E4980AL.



E4980A Ordering Guide

The following steps will guide you through configuring your E4980A.

 Standard Furnished Item
 Description                                           Additional Information
 CD-ROM                                                Contains User's Guide (in PDF) and Sample Program. See documentation option for
                                                       printed manuals.
 CD-ROM                                                Contains Keysight IO Libraries Suite (the latest versions).
 USB Cable                                             USB (Type A) to USB (Type Mini-B) cable
 Power Cable
 Certificate of Calibration
 Note: Test Fixture and printed copy of User's Guide are not furnished. See Documentation Option and Available Accessories for the selection of these items.


 Step 1. Choose Hardware Option (Mandatory)
                                                                         Not
 Description                      Option No.           Requires                               Additional Information
                                                                         Compatible
 Bias Current Interface           E4980A-002           None              001                  Adds a digital interface to allow the E4980A to control
                                                                         (See Notes 1         the 42841A Bias Current Source.
                                                                         and 2)               (The 42841A was discontinued in December 2012.)
 Handler Interface                E4980A-201           None              None                 Adds handler interface
                                                                         (See Note 2)
 Scanner Interface                E4980A-301           None              None                 Adds scanner interface
                                                                         (See Note 2)
 No Interface                     E4980A-710           None              None                 Attaches blank panel to the expansion slots
                                                                         (See Note 2)
 Note 1: The E4980A-001 and E4980A-002 can be installed in the same unit but cannot be operated simultaneously.
 Note 2: Up to 2 interfaces can be installed in the expansion slots on the rear panel. When no interface is added, two of the E4980A-710 are installed.
         When one interface is added, that interface and the E4980A-710 are installed.
 Note 3: Refer to Hardware Upgrade for retrofit information on the above options.




                                                                              2
Step 2. Choose Software Option (If not required, go to Step 3)
                                                                      Not
Description                   Option No.          Requires                             Additional Information
                                                                      Compatible
Power and DC Bias             E4980A-001          None                002              Increases test signal level range to 20 V/100 mA rms
Enhancement                                                           (See Note 1)     max. Adds internal DC bias function controllable from 0
