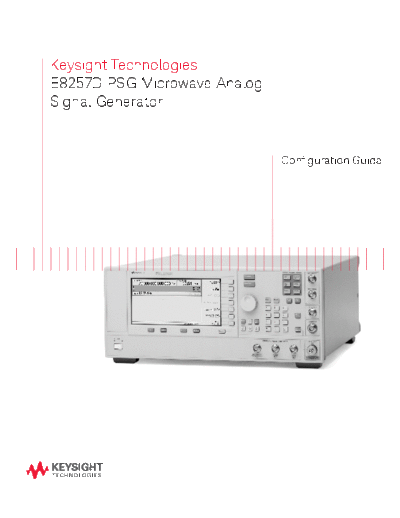

Image preview - the first page of the document



>> Download E8257D PSG Microwave Analog Signal Generator - Configuration Guide 5989-1325EN c20140626 [8] documenatation <<

Text preview - extract from the document

Keysight Technologies
E8257D PSG Microwave Analog
Signal Generator


                              Configuration Guide
This guide assists in the ordering process of the E8257D PSG microwave analog signal generator. Standard product
includes installation guide, electronic documentation set (CD-ROM), adapters, and country specific power cord.


Keysight Technologies, Inc. PSG Microwave Analog Signal Generator Options
Step 1. Choose a frequency range (required)
All frequency range options support underrange to 100 kHz. However, performance specifications are not provided between 100 kHz and
250 kHz. Additionally, Option 567 supports overrange to 70 GHz. Typical performance specifications are provided between 67 GHz and 70 GHz.

Ordering number        Description                                     Purpose                                              Requires
E8257D-520             Frequency range from 250 kHz to 20 GHz          Selects the maximum frequency of the
                                                                       signal generator
E8257D-532             Frequency range from 250 kHz to 31.8 GHz        Selects the maximum frequency of the
                                                                       signal generator
E8257D-540             Frequency range from 250 kHz to 40 GHz          Selects the maximum frequency of the
                                                                       signal generator
E8257D-550             Frequency range from 250 kHz to 50 GHz          Selects the maximum frequency of the
                                                                       signal generator
E8257D-567             Frequency range from 250 kHz to 67 GHz          Selects the maximum frequency of the
                                                                       signal generator

Step 2. Choose ultra-high output power model
Ordering number        Description                                     Purpose                                              Requires
E8257D-521 1           Ultra-high output power model                   Selects the frequency range of the ultra-high
                       Frequency range from 10 MHz to 20 GHz           output power signal generator

Step 3. Choose modulation
Ordering number        Description                                     Purpose                                              Requires
Standard               CW signal generation                            Generates continuous wave (CW) signals
                                                                       (i.e. no modulation)
E8257D-UNT             AM, FM, phase modulation, and LF output         Generates analog modulated signals
E8257D-UNU 2           Pulse modulation                                Generates pulse modulated signals
                                                                       (150 ns minimum pulse width)
E8257D-UNW 2           Narrow pulse modulation                         Generates pulse modulated signals
                                                                       (20 ns minimum pulse width)
E8257D-1SM 3           Scan modulation                                 Provides deep AM capability                          E8257D-520
                                                                                                                            and -UNT

Step 4. Choose step attenuator
Ordering number        Description                                     Purpose                                              Requires
Standard               No step attenuator                              Generates signals with output power levels
                                                                       ranging from
