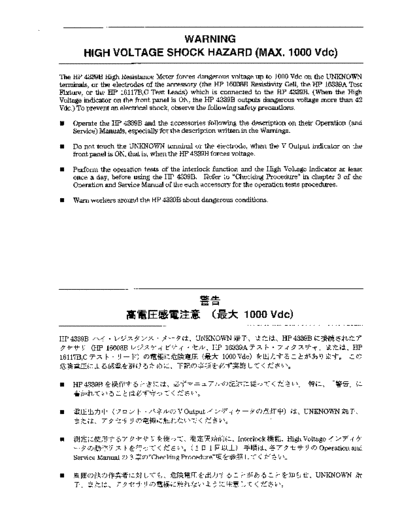

Image preview - the first page of the document
>> Download HP 16117B User documenatation <<
Text preview - extract from the document
Agilent 16117B Low Noise Test Lead
Operation and Service Manual
Agilent Part No. 16117-90060
Printed in JAPAN May 2003
Seventh Edition
Notice
The information contained in this document is subject to change without notice.
This document contains proprietary information which is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of the Agilent Technologies.
Agilent Technologies Japan, Ltd.
Component Test PGU-Kobe
1-3-2, Murotani, Nishi-ku, Kobe-shi,
Hyogo, 651-2241 Japan
Warranty
This Agilent Technologies instrument product is warranted against defects in material and
workmanship for a period of one year from the date of shipment, except that in the case of
certain components listed in this manual, the warranty shall be for the speci ed period. During
the warranty period, Agilent Technologies will, at its option, either repair or replace products
which prove to be defective.
For warranty service or repair, this product must be returned to a service facility designed
by Agilent Technologies. The Buyer shall prepay shipping charges to Agilent Technologies
and Agilent Technologies shall pay shipping charges to return the product to the Buyer.
However, the Buyer shall pay all shipping charges, duties, and taxes for products returned to
Agilent Technologies from another country.
Agilent Technologies warrants that its software and rmware designed by Agilent Technologies
for use with an instrument will execute its programming instruction when property installed on
that instrument. Agilent Technologies does not warrant that the operation of the instrument,
or software, or rmware will be uninterrupted or error free.
Limitation of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate
maintenance by the Buyer, Buyer-supplied software or interfacing, unauthorized modi cation
or misuse, operation outside of the environmental speci cations for the product, or improper
site preparation or maintenance.
No other warranty is expressed or implied. Agilent Technologies speci cally disclaims the
implied warranties of merchantability and tness for a particular purpose.
Certi cation
The Agilent Technologies certi es that this product met its published speci cations at the
time of shipment from the factory. Agilent Technologies further certi es that its calibration
measurements are traceable to the United States National Institute of Standards and
Technology, to the extent allowed by the Institute's calibration facility, or to the calibration
facilities of other International Standards Organization members.
Exclusive Remedies
The remedies provided herein are the buyer's sole and exclusive remedies. Agilent Technologies
shall not be liable for any direct, indirect, special, incidental, or consequential damages,
whether based on contract, tort, or any other legal theory.
Assistance
Product maintenance agreements and other customer assistance agreements are available for
Agilent Technologies products.
If you need assistance, contact your nearest Agilent Technologies Sales and Service Oce.
Addresses are provided at the back of this manual.
Copyright 1991, 1995, 1996, 1999, 2000, 2001, 2003 Agilent Technologies Japan, Ltd.
c
Manual Printing History
The manual printing date and part number indicate its current edition. The printing date
changes when a new edition is printed. (Minor corrections and updates which are incorporated
at reprint do not cause the date to change.) The manual part number changes when extensive
technical changes are incorporated.
December 1991 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : First Edition (part number: 16117-90010)
February 1995 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : Second Edition (part number: 16117-90020)
March 1996 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : Third Edition (part number: 16117-90030)
August 1999 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : Fourth Edition (part number: 16117-90040)
January 2000 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : Fifth Edition (part number: 16117-90040)
July 2001 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : Sixth Edition (part number: 16117-90050)
May 2003 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : Seventh Edition (part number: 16117-90060)
iv
Safety Summary
The following general safety precautions must be observed during all phases of operation,
service, and repair of this instrument. Failure to comply with these precautions or with speci c
WARNINGS elsewhere in this manual may impair the protection provided by the equipment.
In addition it violates safety standards of design, manufacture, and intended use of the
instrument.
The Agilent Technologies assumes no liability for the customer's failure to comply with these
requirements.
Note 16117B is designed for use in INSTALLATION CATEGORY I according to IEC
61010-1 and POLLUTION DEGREE 1 according to IEC 61010-1 and IEC 60664-1.
16117B is an INDOOR USE product.
Do NOT operate in an Explosive Atmosphere
Do not operate the instrument in the presence of
ammable gasses or fumes. Operation of any
electrical instrument in such an environment constitutes a safety hazard.
Keep Away from Live Circuits
Operating personnel must not remove instrument covers. Component replacement and
internal adjustments must be made only by quali ed maintenance personnel. Do not replace
components with the power cable connected. Under certain conditions, dangerous voltages
may exist even with the power cable removed. To avoid injury, always disconnect power and
discharge circuits before touching them.
Do NOT Service or Adjust While Alone
Do not attempt internal service or adjustment unless another person, capable of turning o
power and capable of rendering rst aid and resuscitation, is present.
Do NOT Substitute Parts or Modify Instrument
Because of the danger of introducing additional hazards, do not substitute parts or perform
unauthorized modi cations to the instrument. Return the instrument to a Agilent Technologies
Sales and Service Oce for service and repair to ensure the safety features are maintained.
Dangerous Procedure Warnings
Warnings, such as the example below, precede POTENTIALLY DANGEROUS PROCEDURES
throughout this manual. Instructions contained in the warnings must be followed.
Warning Dangerous voltages, capable of causing death, are present in this
instrument. Use extreme caution when handling, testing, and adjusting
this instrument.
v
Safety Symbols
General de nitions of safety symbols used on equipment or in manuals are listed below.
Instruction manual symbol: the product is marked with this symbol when it is
necessary for the user to refer to the instruction manual.
Alternating current.
Direct current.
On (Supply).
O (Supply).
This Warning sign denotes a hazard. It calls attention to a procedure, practice,
condition or the like, which, if not correctly performed or adhered to, could
result in injury or death to personnel.
This Caution sign denotes a hazard. It calls attention to a procedure, practice,
condition or the like, which, if not correctly performed or adhered to, could
result in damage to or destruction of part or all of the product.
Note denotes important information. It calls attention to a procedure,
practice, condition or the like, which is essential to highlight.
Axed to product containing static sensitive devices use anti-static handling
procedures to prevent electrostatic discharge damage to component.
Caution, risk of electric shock : Terminals which may be supplied from the
interior of the equipment at a voltage exceeding 1 kV, or allow connection to a
voltage exceeding 1 kV are marked with this symbol.
vi
Contents
1. General Information
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Using the 16117B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Accessories Supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Operating and Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . 1-2
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Speci cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2. Preparation for Use
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Initial Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Ambient Environmental Considerations . . . . . . . . . . . . . . . . . . . . 2-3
Operating and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Repackaging the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
3. Operation
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Connecting the Adapter for Use . . . . . . . . . . . . . . . . . . . . . . . 3-3
OPEN Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Pin Probes (Option 001) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Soldering Sockets (Option 002) . . . . . . . . . . . . . . . . . . . . . . . 3-5
Checking Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
4. Service
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Replaceable Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Contents-1
Figures
2-1. Product Overview (with 16117B option 003) . . . . . . . . . . . . . . . . . 2-2
3-1. Adapter Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3-2. Floating DUT Measurement (Option 003 Alligator Clips) . . . . . . . . . . . 3-3
3-3. Grounded DUT Measurement (Option 003 Alligator Clips) . . . . . . . . . . 3-3
Tables
1-1. Furnished Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1-2. Supplied Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2-1. Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
4-1. Replaceable Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Contents-2
1
General Information
Introduction
The purpose of this manual is to enable you to use your 16117B Low Noise Test Lead eciently
and con dently. This manual contains both general and speci c information. To use the 16117B
to perform a speci c function (without having to read the entire manual), follow the directions
in \Using the 16117B".
Using the 16117B
The 16117B has been designed to operate speci cally with the 4339B High Resistance Meter.
To install the 16117B, turn to Chapter 2.
To operate the 16117B, turn to Chapter 3.
To order replaceable parts for the 16117B, turn to \Replaceable Parts" in Chapter 4.
Product Description
The 16117B has been designed to operate speci cally with the 4339B High Resistance Meter.
The 16117B is used to measure the resistance of insulation materials. The 16117B has the
following features:
Reducing electrical noise eects by using shielded cable
High-voltage safety designed using an interlock circuit
Accessories Supplied
The accessories listed in Table 1-1 are supplied with the 16117B:
Table 1-1. Furnished Accessories
Description Part Number Quantity
Operation and Service Manual P/N 16117-90060 1
General Information 1-1
Options
The following options are supplied for the 16117B:
Table 1-2. Supplied Options
Option Number Description
Option 001 Add Pin Probes
Option 002 Add Soldering Sockets
Option 003 Add Alligator Clips
Operating and Safety Precautions
Service
The voltage levels (up to 1000 V) in this adapter warrants extreme care for operator safety.
Service must be performed only by quali ed personnel.
Speci cations
This section lists the complete 16117B speci cations. These speci cations are the performance
standards and limits against which the 16117B is tested. When shipped from the factory, the
16117B meets the speci cations listed in this section.
Applicable Test Voltage : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 1000 V maximum
Applicable Test Current1 : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 0.5 mA maximum
Applicable Instrument : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 4339A/B
Resistance Measurement Range : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 1 2 103 to 1 2 1011
Operating Temperature : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 0 to 55 C
Operating Humidity : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 70% RH (@40 C)
Cable Length : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 1 m (connector to clip)
Non-operating Temperature : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 040 to 70 C
Non-operating Humidity : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : 95% RH (@40 C)
1. Maximum measurable current of the 4339B is 100 A.
Note When used with the 16117B, the output current of the 4339B is limited up to
0.5 mA for safety.
Note If the interlock connector is not connected, the 4339B will not output the
source voltage.
1-2 General Information
2
Preparation for Use
Introduction
This chapter explains how to install the 16117B Low Noise Test Lead. The topics covered
include initial inspection, ambient environmental considerations, connecting the adapter for
use, and repackaging the adapter for shipment.
Initial Inspection
The adapter has been carefully inspected electrically and mechanically before being shipped
from the factory. It should be in perfect physical condition, no scratches, dents or the like, and
it should be in perfect electrical condition. Verify this by carefully performing an incoming
inspection to check the adapter for signs of physical damage and missing contents. If any
discrepancy is found, notify the carrier and Agilent Technologies. Your Agilent Technologies
sales oce will arrange for repair and replacement without waiting for the claim to be settled.
1. Inspect the shipping container for damage, and keep the shipping materials until the
incoming inspection is completed.
2. Verify that the shipping container contains everything shown in Figure 2-1 and listed in
Table 2-1.
3. Inspect the exterior of the 16117B for any signs of damage.
Preparation for Use 2-1
Figure 2-1. Product Overview (with 16117B option 003)
Table 2-1. Contents
Description Agilent Part Number Quantity
Low Noise Test Lead1
1 16117B 1
Operation and Service Manual2
2 16117-90060 1
1 Furnished with Alligator Clips if you ordered the 16117B option 003.
2 Operation and Service Manual is not shown in Figure 2-1.
2-2 Preparation for Use
When an option is ordered with the 16117B, the following items are included:
Option 001
Description Agilent Part Number Quantity
Pin Probes
3 (Red) 8710-2302 1
(Black) 8710-2301 1
Option 002
Description Agilent Part Number Quantity
Soldering Sockets
4 (Red) 1200-1904 1
(Black) 1200-1903 1
Option 003
Description Agilent Part Number Quantity
Alligator Clips (Red) 8710-2405 1
(Black) 8710-2404 1
Ambient Environmental Considerations
Operating and Storage
The 16117B must be operated within an ambient temperature range of 0 C to +55 C and
relative humidity up to 70% RH at 40 C (non-condensing).
The 16117B may be stored within a temperature range of 040 C to +70 , and at a relative
humidity up to 95% at +40 C (non-condensing).
Repackaging the Adapter
If shipment to a Agilent Technologies service center is required, each adapter should be
repackaged using the original factory packaging materials.
Alteratively, comparable packaging materials may be used. Wrap the adapter in heavy paper
and pack in anti-static plastic packing material. Use sucient shock absorbing material on
all sides of the 16117B to provide a thick, rm cushion and to prevent movement. Seal the
shipping container securely and mark it FRAGILE.
Preparation for Use 2-3
3
Operation
Introduction
This chapter describes the features of the 16117B (see Figure 3-1), and its connection to the
4339B and DUT.
Operation 3-1
Figure 3-1. Adapter Features
1. Interlock connector. This connector enables the interlock function which enables and
disables the application of the source voltage from the 4339B. When the interlock connector
is disconnected, the source voltage will not be applied. The current limit function is
automatically set at 0.5 mA maximum by the interlock circuit.
2. Triaxial connector. The measured signal is carried on the center conductor of this
connector.
3. BNC connector. This connector provides the source voltage to the 16117B. This is a high
voltage BNC connector and is not compatible with standard BNC connectors.
4. Alligator Clip (Red) (Option 003). When making a
oating DUT con guration measurement,
the Red test clip provides a source voltage of up to 1000 V. In the grounded DUT
measurement con guration, the Red test clip is connected to ground.
5. Alligator Clip (Black) (Option 003). When making a
oating DUT con guration
measurement, the Black test clip becomes the measurement signal path. In the grounded
DUT measurement con guration, the Black test clip provides a source voltage of up to 1000
V.
6. Pin Probes (Option 001). The probes enable to measure
at or small DUTs such as PC
boards and IC sockets. It can be attached to the ends of the low noise test leads in place of
the Alligator Clips. The Protective Cap avoids making contact with adjacent IC pins.
7. Soldering Sockets (Option 002). The sockets help make simple custom-made test leads.
3-2 Operation
Connecting the Adapter for Use
The 4339B connection with 16117B has two con gurations:
oating and grounded DUT
measurement con gurations. The connections are dierent for each con guration. The
connections are as shown in Figure 3-2 and Figure 3-3.
Warning Do NOT touch the electrode and UNKNOWN connector while the High
Voltage indicator is lit which shows the 4339B's output is a high voltage
of up to 1000 Vdc maximum. You must operate after turning o the
voltage source output and you have con rmed the high voltage indicator
is turned o.
Figure 3-2. Floating DUT Measurement (Option 003 Alligator Clips)
Figure 3-3. Grounded DUT Measurement (Option 003 Alligator Clips) Operation 3-3
OPEN Correction
OPEN correction cancels the residual inductance eects for resistance measurements. The
OPEN procedure is as follows:
Warning Do NOT touch the electrode and UNKNOWN connector while the High
Voltage indicator is lit which shows the 4339B's output is a high voltage
of up to 1000 Vdc maximum. You must operate after turning o the
voltage source output and you have con rmed the high voltage indicator
is turned o.
OPEN Correction Procedure
1. Leave the test clips (or probes) open and separated from each other.
2. Set and apply source voltage for your measurement requirement at the 4339B.
3. Wait until the measurement value has stabilized.
4. Press of the 4339B to perform the OPEN correction.
Note When the OPEN correction is performed, the electrodes must be separated
enough to prevent leakage current from occurring which will lead to OPEN
correction instability.
Note To realize the best performance of the 16117B and 4339B, the following items
must be carefully observed when performing the OPEN correction:
Do NOT allow vibration to reach the 16117B when performing an OPEN
correction. Vibration will result in OPEN correction instability.
Perform the OPEN correction in an environment free of external electrical
noise.
If these items are not satis ed, the OPEN correction will not completely cancel
the residual eects.
Operation
Step-by-step instructions on how to make a measurement with the 16117B are as follows:
Warning Do NOT touch the electrode and UNKNOWN connector while the High
Voltage indicator is lit which shows the 4339B's output is a high voltage
of up to 1000 Vdc maximum. You must operate after turning o the
voltage source output and you have con rmed the high voltage indicator
is turned o.
1. Connect the 16117B to the UNKNOWN terminals of the 4339B. Refer to \Connecting the
Adapter for Use".
2. Perform an OPEN correction as described in \OPEN Correction".
3. Connect the test clips (or probes) to the DUT.
4. Follow the measurement instructions described in the 4339B Operating Manual to do the
measurement.
3-4 Operation
Pin Probes (Option 001)
The Pin Probes (opt.001) enables to measure
at or small DUTs such as PC boards and IC
sockets.
Warning You must handle between guard collar and socket (see gure below) to
prevent an electrical shock when the V output indicator on the front panel
of the 4339B is ON.
Note The protective cap avoids making contact with adjacent pins. When measuring
IC pins, attach the protective cap to the tip of the probe.
Soldering Sockets (Option 002)
The Soldering Sockets (opt.002) helps make simple custom-made test leads.
Warning Agilent Technologies shall NOT LIABLE for any damages or dangers to
the operator incurred on use of a customized product except for the
16117B itself.
Test xtures designed by users are exposed to voltages up to 1 kV. An
operator may receive an electrical shock if he/she makes contact with
test xture components. Design all components/test xtures so that an
operator can use the xture safely, without being exposed to electrical
shock hazard.
For example:
Insulate all connections, solder joints, bare conductors.
Design the xture so that an operator cannot touch the measurement
terminals when making the measurement.
Provide warning labels to warn the operator of the high-voltage
danger, and to avoid touching any connections, terminals, or DUT
when the measurement is in process or when the high voltage is
turned on.
Operation 3-5
Checking Procedure
The 16117B and the 4339B is operated with high voltages of up to 1000 V. These products are
designed so that the operator can make safe measurements. To maintain this safe condition,
you must periodically perform the following safety veri cation procedure.
Warning Do NOT touch the electrode and UNKNOWN connector while the High
Voltage indicator is lit which shows the 4339B's output is a high voltage
of up to 1000 Vdc maximum. You must operate after turning o the
voltage source output and you have con rmed the high voltage indicator
is turned o.
Daily Safety Veri cation Procedure
1. Connect the 16117B to the 4339B.
2. Set the source voltage to 42 V.
3. Press the V output key of the 4339B.
Con rm that the V output indicator and the High Voltage indicator turns on.
4. Disconnect the interlock connector of the 16117B from the 4339B.
Con rm that the High Voltage indicator turns o immediately.
5. Reconnect the interlock connector to the 4339B.
Con rm that the High Voltage indicator still turns o
If you encountered any errors in checking procedure, contact your nearest Agilent Technologies
Oce.
3-6 Operation
4
Service
Introduction
This chapter gives the replaceable parts information for the 16117B.
Replaceable Parts
Table 4-1 identi es the replaceable parts. Do not disassemble the 16117B any further than
shown in Table 4-1. The listed parts can be ordered from your nearest Agilent Technologies
Oce. Ordering information should include the Agilent part number and the quantity required.
Warning These servicing instructions are for use by quali ed personnel only. Do
NOT perform any servicing other than that contained in the operating
section unless you are quali ed to do so.
Service 4-1
Table 4-1. Replaceable Parts List
Reference Agilent Part
Designator Number Qty. Description Note
1 16117-87101 1 Model Label
16117-40001 1 Holder
16117-40002 1 Holder (with Nuts)1
16117-25001 1 Plug Hole for a holder
0515-1552 2 Screw Pan Head to x a holder
3050-0891 2 Washer Flat to x a holder
2 8710-2405 1 Clip (Red) Option 003
3 8710-2404 1 Clip (Black) Option 003
4 16117-61601 1 Cable Assembly (Triaxial)2
5 16117-61602 1 Cable Assembly (BNC)2
6 16117-61603 1 Cable Assembly (Interlock)3
7 16117-25006 2 Black Cover
8 8710-2302 1 Pin Probe (Red)4 Option 001
9 8710-2301 1 Pin Probe (Black) Option 001
10 1200-1904 1 Soldering Socket (Red) Option 002
11 1200-1903 1 Soldering Socket (Black) Option 002
- 16117-90060 1 Operation and Service Manual5
1 not including a model label.
2 including a cable tie, a warning label, a black cover and a contact plug.
3 including a cable tie
4 including protective cap.
5 This part is not shown in this gure.
4-2 Service
