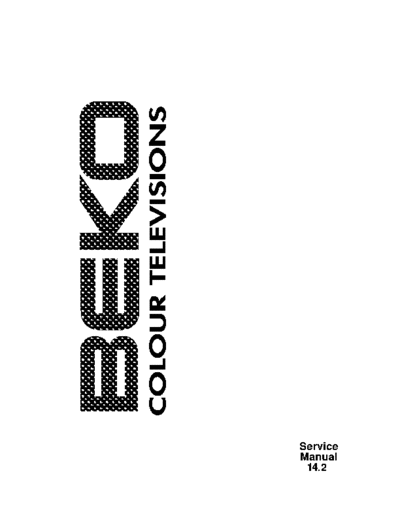

Image preview - the first page of the document
beko_14.2_186


>> Download beko_14.2_186 documenatation <<

Text preview - extract from the document
                                                                                                                                                      TV
BEKO                                                                                    TV                               No. OF ISSUE : SB-BK0202
                                                                                                                         ISSUE DATE : 2002. 09. 06

    BUYER NAME : LG                                                                          BUYER(LGE) MODEL : 28CZ10RX, 32CZ10RX
    BEKO MODEL : V30, T82                                                                    DATE OF CHANGE : 2002.08.24

    APPLICABLE SERIAL NO. : Immediately
    SUBJECT : Damage of FBT due to Arcing (Replacing Termal brand FBT with Eldor FBT)

  ? Application Model :

1. GENERAL INFORMATION

           LOCA                            BEFORE             CHANGE                                           AFTER         CHANGE                 I
NO                                                                                                                                                  / N/C
              NO.             PART NO.                     DESC. / SPEC.                       PART NO.                     DESC. / SPEC.           C
  1        TR502            058834-TR5                28" 16:9 FBT (Termal)                   057834-EL2               28" 16:9 FBT (Eldor)        C 3
  1        TR502            058234-TR5                32" 16:9 FBT (Termal)                   057234-EL3               32" 16:9 FBT (Eldor)        C 3
