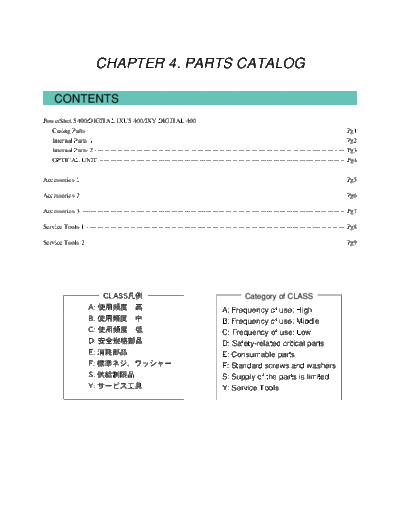

Image preview - the first page of the document
>> Download CANON_POWERSHOT_S400 documenatation <<
Text preview - extract from the document
CHAPTER 4. PARTS CATALOG
CONTENTS
PowerShot S400/DIGITAL IXUS 400/IXY DIGITAL 400
Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1
Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2
Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3
OPTICAL UNIT ----------------------------------------------------------------------------------------------------------------- Pg4
Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg5
Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg6
Accessories-3 ------------------------------------------------------------------------------------------------------------------------- Pg7
Service Tools-1 ----------------------------------------------------------------------------------------------------------------------- Pg8
Service Tools-2 ----------------------------------------------------------------------------------------------------------------------- Pg9
Category of CLASS
A: Frequency of use: High
B: Frequency of use: Middle
C: Frequency of use: Low
D: Safety-related critical parts
E: Consumable parts
F: Standard screws and washers
S: Supply of the parts is limited
Y: Service Tools
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg1
Casing Parts
24 26
13
16
23 8
15
14
9
7 11
10 12
27
25
22 5 27
20
17
6
19
4
18
3
2
21
1
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg1
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CD3-0675-000 B 1 COVER, DC COUPLER
2 CD3-0657-000 B 1 COVER, BATTERY
3 CM1-2113-000 B 1 FRONT COVER UNIT IXY DIGITAL 400
CM1-2114-000 B 1 FRONT COVER UNIT PowerShot S400
CM1-2115-000 B 1 FRONT COVER UNIT DIGITAL IXUS 400
4 CD3-0684-000 C 1 SHEET, INSULATION
5 CD3-0648-000 C 1 RUBBER, FINDER
6 CD3-0645-000 B 1 RING, STRAP
7 CL1-2022-000 B 1 SIDE COVER UNIT
8 CD3-0698-000 B 1 COVER, CF
9 CS8-6162-000 C 1 SPRING, CF COVE
10 CD3-0699-000 C 1 BAR, CF COVER
11 CD3-0711-000 C 1 SPRING, MODE DIAL CLICK
12 CD3-0712-000 C 1 PLATE, MODE DIAL CONTACT
13 CM1-2111-000 B 1 REAR COVER UNIT
14 CS8-5264-000 C 1 SPRING, CF LOCK
15 CD1-4200-000 C 1 LOCK, CF COVER
16 CD3-0710-000 B 1 DIAL, MODE
17 CD3-0706-000 C 1 SPACER, LCD
18 CD3-0704-000 B 1 COVER, JACK
19 CY1-6259-000 B 1 PLATE, BODY NUMBER #13011xxxxx
20 CD3-0730-000 C 1 SCREW
21 CD3-0728-000 C 1 SCREW
22 CD3-0687-000 C 1 SCREW
23 CD3-0679-000 C 2 SCREW
24 CD3-0678-000 C 2 SCREW
25 CD3-0734-000 C 1 SCREW
26 CD3-0731-000 C 1 SCREW
27 CD3-0677-000 C 4 SCREW
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg2
Internal Parts-1
5 7
9
8
13
6 12
10
11 12
14
13
4
2
3
1
12
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg2
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CM1-2086-000 C 1 OPERATION KEY UNIT
2 CD3-0735-000 C 1 SHEET, DUSTPROOF
3 WK1-5140-000 C 1 BATTERY, LITHIUM(2ND)
4 CD3-0631-000 C 1 SPACER, FINDER GAP
5 CL1-2024-000 C 1 SHIELD SHEET UNIT
6 CM1-2085-000 C 1 PCB ASS'Y, MAIN
7 CM1-2072-000 B 1 SHUTTER BUTTON UNIT
8 CM1-2075-000 C 1 BACK LIGHT UNIT
9 WG2-5243-000 C 1 PANEL, LCD
WG2-5243-001 C 1 PANEL, LCD (SELECTION)
10 CD3-0715-000 C 1 PLATE, OPERATION
11 CD3-0716-000 C 1 TAPE, OPERATION PLATE
12 CD1-3108-000 C 4 SCREW
13 XA1-7170-357 F 3 SCREW
14 XA4-9170-359 F 1 SCREW
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg3
Internal Parts-2
14
9
8
10
15
6
12
7
17
5
16
18
13
4
2
3 11
18
1
See Pg4 14
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg3
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CD3-0723-000 C 1 SOCKET, TRIPOD
2 CM1-2090-000 C 1 FINDER UNIT
3 CM1-2074-000 C 1 BATTERY BOX UNIT
4 CD3-0655-000 C 1 SPRING, BATTERY LOCK
5 CD3-0654-000 C 1 LOCK, BATTERY
6 CD3-0690-000 C 1 SHEET, GROUND
7 CK2-2027-000 C 1 FPC, MAIN-FLASH
8 CM1-2071-000 C 1 FLASH BASE UNIT
9 CM1-2112-000 C 1 SPEAKER SHEET UNIT
10 CM1-2084-000 C 1 CF UNIT
11 CD3-0707-000 C 1 FRAME, MAIN
12 CY4-6074-000 D 1 FUSE, MATSU. DENKI UNHS 206
13 XA4-9140-359 F 2 SCREW
14 XA1-7170-307 F 3 SCREW
15 CD3-0700-000 C 2 SCREW
16 XA4-9170-309 F 2 SCREW
17 XA4-5140-209 F 1 SCREW
18 XA4-5170-309 F 4 SCREW
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg4
OPTICAL UNIT
10
11
9
8
7
6
5
12
4
3
2
1
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg4
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CD3-0597-000 B 1 CAP, BASE BARREL
2 CD3-0548-000 C 1 SHEET, LENS BARREL
3 CD3-0543-000 B 1 CAP, BARREL
4 CD3-0558-000 C 1 TAPE, BARREL CAP SIZE (015)
5 CD3-0552-000 B 1 CAP, FRONT
6 CD3-0550-000 B 2 PLATE, BARRIER
7 CD3-0551-000 C 1 BASE, BARRIER
8 CD3-0554-000 C 1 PLATE, BARRIER DRIVE
9 CD3-0557-000 C 1 SPRING, BARRIER OPEN
10 CD3-0556-000 C 1 SPRING, BARRIER CLOSE
11 CD3-0553-000 C 1 RING, BARRIER DRIVE
12 CM1-2062-000 C 1 OPTICAL UNIT
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg5
Accessories-1
Wrist Strap WS-300 Terminal Cover NB-1LH USB Interface Cable
5 IFC-300PCU
1
N.S
N.S
Canon Digital Camera Battery Charger AV Cable AVC-DC100
Solution Disk, CB-2LS/2LSE
ArcSoft Camera Suite Disk
2
N.S
N.S
N.S
DC Coupler DR-500 CF Card FC-32M CF Case
6
3
2M
-3
FC
N.S
AC Cable
4
J
N
E
PLUG TYPE B
N.Sl : N.S Stand for No Stock (Product available)
A
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg5
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 C84-1082-000 B 1 STRAP, WRIST WS-300
2 C84-1165-000 S 1 CD-ROM, SOLUTION VER.12.0 (J/E) FOR JAPAN
C84-1166-000 S 1 CD-ROM, SOLUTION VER.12.0 (E/F/S) FOR USA, CANADA
C84-1167-000 S 1 CD-ROM, SOLUTION VER.12.1 (J/E/C) FOR ASIA, AUSTRALIA
3 C84-1044-000 B 1 DC COUPLER DR-500
4 D82-0641-000 C 1 CABLE, AC (J) FOR JAPAN
D82-0642-000 C 1 CABLE, AC (N) FOR USA, CANADA
D82-0643-000 C 1 CABLE, AC (E) FOR EUROPE, ASIA
D82-0644-000 C 1 CABLE, AC (B) FOR ASIA
D82-0645-000 C 1 CABLE, AC (A) FOR AUSTRALIA
5 CD1-4329-000 B 1 COVER, TERMINAL NB-1LH
6 FC2-9610-000 B 1 CASE, CF
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg6
Accessories-2
Waterproof Case WP-DC 800 N.S
10
N.S
N.S 9
1 6 7
2
N.S
5
2 8
N.S
5 10
3
4
3
N.S
3 N.S
N.S 4
3 N.S
Sheet
Waterproof Seal
11
14
Neck Strap Silicone Grease
12 15
Wrist Strap Diffusion Plate Unit
13
16
N.Sl : N.S Stand for No Stock (Product available)
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg6
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CY1-6171-000 C 1 BUCKLE ASS'Y
2 CY1-6167-000 C 10 SPRING, COIL
3 CY1-6168-000 C 10 E RING
4 CY1-6169-000 C 4 CAP, BUTTON
5 CY1-6252-000 C 10 O RING
6 CY1-6203-000 C 1 SHAFT, BUCKLE
7 CY1-6279-000 C 1 HOLDER, DEFUSION PLATE
8 CY1-6280-000 C 1 PROTECTOR, DEFUSION PLATE
9 CY6-3210-000 C 3 SCREW (2 x 7)
10 CY6-3211-000 C 2 SCREW (2 x 6)
11 CY1-6276-000 C 1 SHEET FOR JAPAN
12 CY1-6099-000 B 1 STRAP, NECK
13 CY1-6174-000 B 1 STRAP, WRIST
14 CY1-6277-000 B 1 PACKING, RUBBER
15 CY9-3029-000 C 1 GREASE PACKING
16 CY1-6278-000 B 1 DIFFUSION PLATE UNIT
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg7
Accessories-3
Camera User Guide
1
Software Starter Guide
2
System Map
3
Quick Start Guide
4
PowerShot S400
DIGITAL IXUS 400
IXY DIGITAL 400
Pg7
PARTS LIST
SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
1 CDI-E081-000 S 1 I.BOOK(ENGLISH) FOR USA, CANADA,
ASIA, AUSTRALIA
CDI-S071-000 S 1 I.BOOK(SPANISH) FOR USA
CDI-J072-000 S 1 I.BOOK(JAPANESE) FOR JAPAN
CDI-F070-000 S 1 I.BOOK(FRENCH) FOR CANADA
2 CDI-E070-000 S 1 SOFTWARE GUIDE(ENGLISH) VER.12 FOR USA, CANADA,
ASIA, AUSTRALIA
CDI-S060-000 S 1 SOFTWARE GUIDE(SPANISH) VER.12 FOR USA
CDI-J061-000 S 1 SOFTWARE GUIDE(JAPANESE) VER.12 FOR JAPAN
CDI-F059-000 S 1 SOFTWARE GUIDE(FRENCH) VER.12 FOR CANADA
3 CDI-E082-000 S 1 SYSTEM MAP(ENGLISH) FOR USA, CANADA,
ASIA, AUSTRALIA
CDI-S072-000 S 1 SYSTEM MAP(SPANISH) FOR USA
CDI-J073-000 S 1 SYSTEM MAP(JAPANESE) FOR JAPAN
CDI-F071-000 S 1 SYSTEM MAP(FRENCH) FOR CANADA
4 CDI-E083-000 S 1 QUICK START GUIDE(ENGLISH) FOR USA, CANADA,
ASIA, AUSTRALIA
CDI-S073-000 S 1 QUICK START GUIDE(SPANISH) FOR USA
CDI-J074-000 S 1 QUICK START GUIDE(JAPANESE) FOR JAPAN
CDI-F072-000 S 1 QUICK START GUIDE(FRENCH) FOR CANADA
