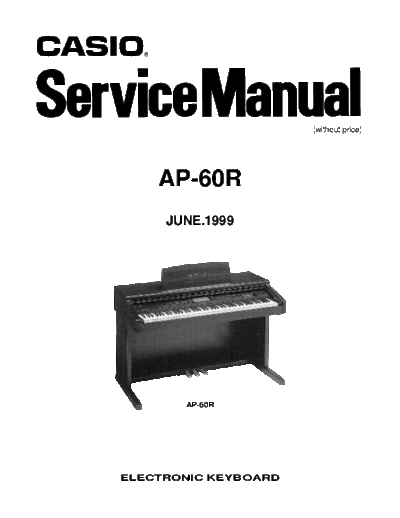

Image preview - the first page of the document



>> Download casio_ap60r documenatation <<

Text preview - extract from the document

                              (without price)




            AP-60R
             JUNE.1999




               AP-60R




        ELECTRONIC KEYBOARD
INDEX
                                       CONTENTS

  Safety Notice ...................................................................................... 1
  Specifications .................................................................................... 2
  Block Diagram ................................................................................... 3
  PCB Layout ........................................................................................ 4
  Disassembly Instructions ................................................................. 5
  Circuit Description ............................................................................ 8
  Print Circuit Board ........................................................................... 10
  Troubleshooting .............................................................................. 17
  Wiring Diagram ................................................................................ 19
  Exploded View ................................................................................. 20
  Parts List .......................................................................................... 21
  Schematic Diagrams ....................................................................... 25




                                 SAFETY NOTICE




CAUTION!
Danger of explosion if battery is incorrectly replaced.
Replace only with the same of equivalent type recommended
by the appliance manufacturer.Discard used batteries
according to manufacturer's instructions.




                                               --1--
                                SPECIFICATIONS

GENERAL
Number of keys       88
Polyphonic:          32-note
Preset tones:        72, Tone, Tempo, Layer, Auto-Harmonize
Key transpose:
