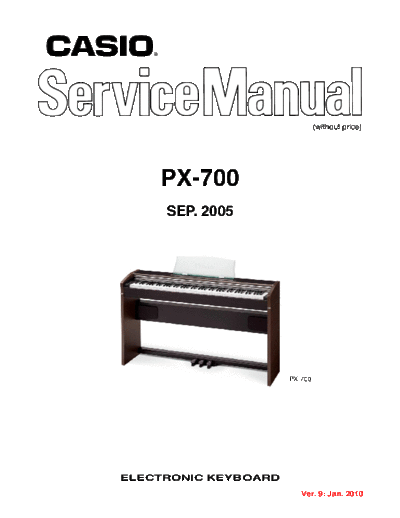

Image preview - the first page of the document
casio_px_700


>> Download casio_px_700 documenatation <<

Text preview - extract from the document
            PX-700
             SEP. 2005




                              PX-700




        ELECTRONIC KEYBOARD
INDEX                            Ver. 9: Jan. 2010
                                                  CONTENTS

Specifications ---------------------------------------------------------------------------------------------- 1
Block Diagram --------------------------------------------------------------------------------------------- 2
Circuit Description --------------------------------------------------------------------------------------- 3
Printed Circuit Board ------------------------------------------------------------------------------------ 4
Disassembly ------------------------------------------------------------------------------------------------ 6
Diagnostic Program ------------------------------------------------------------------------------------ 14
Schematic Diagrams ----------------------------------------------------------------------------------- 16
Exploded View ------------------------------------------------------------------------------------------- 20
Parts List --------------------------------------------------------------------------------------------------- 22
                                            SPECIFICATIONS
GENERAL
Keyboard:                   88 piano keys (with touch response)
Polyphony:                  32 notes, maximum
Tones:                      11; with layer, split
Digital Effects:            Reverb (4 types), Chorus (4 types), DSP, Brilliance
Metronome:
