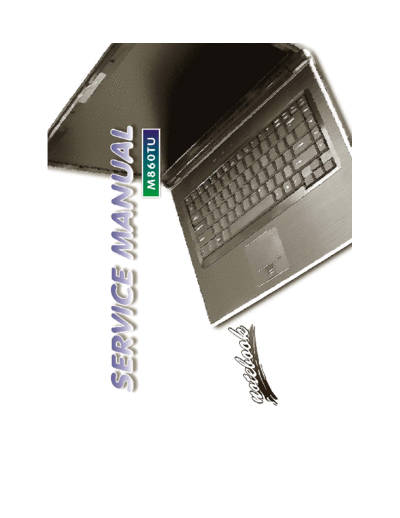

Image preview - the first page of the document
clevo_m860tu_156


>> Download clevo_m860tu_156 documenatation <<

Text preview - extract from the document
                    Preface




Notebook Computer

M860TU

Service Manual




                              Preface
                          I
          Preface

                    Notice
                    The company reserves the right to revise this publication or to change its contents without notice. Information contained
                    herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
                    dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
                    they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

                    This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
                    reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
                    tion, except for copies kept by the user for backup purposes.

                    Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
                    their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
                    of that product or its manufacturer.
Preface




                    Version 1.0
                    July 2008




                    Trademarks
                    Intel, and Intel Core are trademarks/registered trademarks of Intel Corporation.
                           is a trademark of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.
                    Other brand and product names are trademarks and./or registered trademarks of their respective companies.




          II
                                                                                                                        Preface

About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the M860TU se-
ries notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.

Appendix A, Part Lists




                                                                                                                                   Preface
Appendix B, Schematic Diagrams




                                                                                                                             III
          Preface

                                                      IMPORTANT SAFETY INSTRUCTIONS

                    Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
                    sons when using any electrical equipment:

                    1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
                       basement or near a swimming pool.
                    2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
                       trical shock from lightning.
                    3. Do not use the telephone to report a gas leak in the vicinity of the leak.
                    4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
                       explode. Check with local codes for possible special disposal instructions.
                    5. This product is intended to be supplied by a Listed Power Unit (Full Range AC/DC Adapter - AC Input 100 - 240V,
                       50 - 60Hz/ DC Output 20V, 6.A (120W) minimum).
Preface




                                                                           CAUTION
                    Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.

                               TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
                                            TELECOMMUNICATION LINE CORD

                                        This Computer's Optical Device is a Laser Class I Product




          IV
                                                                                                                                           Preface

Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1.   Don't drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
                           Do not expose the computer      Do not place it on an unstable   Do not place anything heavy
                           to any shock or vibration.      surface.                         on the computer.




2.   Keep it dry, and don't overheat it. Keep the computer and power supply away from any kind of heating element. This
     is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
           Do not expose it to excessive   Do not leave it in a place       Don't use or store the com-     Do not place the computer on




                                                                                                                                                     Preface
           heat or direct sunlight.        where foreign matter or mois-    puter in a humid environment.   any surface which will block
                                           ture may affect the system.                                      the vents.




3.   Follow the proper working procedures for the computer. Shut the computer down properly and don't forget to save
     your work. Remember to periodically save your data as data may be lost if the battery is depleted.
           Do not turn off the power       Do not turn off any peripheral   Do not disassemble the com-     Perform routine maintenance
           until you properly shut down    devices when the computer is     puter by yourself.              on your computer.
           all programs.                   on.




                                                                                                                                                V
          Preface

                                         4.   Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
                                              netic fields. These can hinder proper performance and damage your data.
                                         5.   Take care when using peripheral devices.

                                                                                  Use only approved brands of    Unplug the power cord before
                                                                                  peripherals.                   attaching peripheral devices.




                                         Power Safety
Preface




                                         The computer has specific power requirements:
