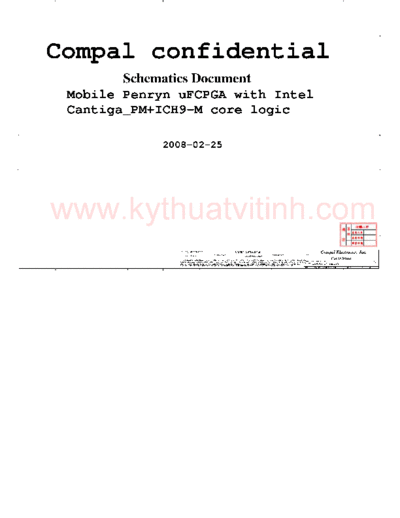

Image preview - the first page of the document
>> Download HP Pavilion DV4 ICH9 VGA documenatation <<
Text preview - extract from the document
A B C D E
1 1
Compal confidential
Schematics Document
2
Mobile Penryn uFCPGA with Intel 2
Cantiga_PM+ICH9-M core logic
2008-02-25
3 3
www.kythuatvitinh.com
4 4
Security Classification Compal Secret Data Compal Electronics, Inc.
Issued Date 2008/02/25 Deciphered Date 2008/02/25 Title
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
Cover Sheet
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D Size Document Number Rev
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS Custom LA-4102P Blade discrete 0.4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Date: Monday, February 25, 2008 Sheet 1 of 53
A B C D E
A B C D E
Compal confidential Montevina Consumer Discrete
CK505 72QFN
Thermal Sensor Clock Generator
Mobile Penryn
1
VRAM DDR2 EMC1402 SLG8SP553V 1
P17
128/512MB uFCPGA-478 CPU
P6
page 23,24
P6,7, 8
64bits Fan conn P6 H_A#(3..35)
TV out Discrete FSB
H_D#(0..63) 667/800/1066 MHz 1.05V
Nvidia DDR2 SO-DIMM X2
NB9M-GE DDR2 667MHz 1.8V
Dock connecter
BANK 0, 1, 2, 3 P15, 16
P20,21,22
Intel Cantiga MCH
Dual Channel
LVDS Panel FCBGA 1329
Interface P19
USB conn x3
P9, 10, 11, 12, 13, 14 P36
CRT CRT
2 2
P18
P40 USB2.0 X12
DMI X4 C-Link BT Conn
Support V1.3 P36
HDMI P42
USB Camera
P19
PCI-E BUS*5 Azalia
Intel ICH9-M SATA Master-1
Flash Memory Card SATA Slave
Realtek Mini-Card*2 New Card mBGA-676 Audio CKT AMP & Audio Jack
SATA Slave Codec_IDT9271B7 TPA6017A2
WLAN & Robson Controller
811C(Gbe) P25,26,27,28 P33 P35
P30 P31 P31
JMB385
MDC P34
P32
RJ45/11 CONN LPC BUS
P30
3 SATA HDD Connector 3
P29
LED
P39 7 in1 Slot
ENE
www.kythuatvitinh.com
P32
KB926 SATA ODD Connector
P29
RTC CKT. P38
P26
e-SATA Connector Dock
Touch Pad CONN. Int.KBD With 3'th USB P29 P40
FPR Conn P39 P38
SPI
CIR Conn
SPI ROM P35
Power On/Off CKT. 25LF080A P37
4 Capsense switch Conn 4
Digitally signed by dd
P39
DC/DC Interface CKT.
P41
Touch Screen Conn
Security Classification
DN: cn=dd, o=dd, Secret Data
ou=dd,
Compal Compal Electronics, Inc.
Issued Date [email protected], c=US
2008/02/25 Deciphered Date 2008/02/25 Title
Block Diagram
Date: 2009.11.12 09:18:54 +07'00'
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D Size Document Number Rev
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS Custom LA-4102P Blade discrete 0.4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Date: Monday, February 25, 2008 Sheet 2 of 53
A B C D E
A
X MEANS Symbol Note :
Voltage Rails O MEANS ON OFF
: means Digital Ground
+5VS
+3VS
power +1.5VS
: means Analog Ground
plane
+0.9V
+5VALW +1.8V +VCCP
@ : means just reserve , no build
+B
DEBUG@ : means just reserve for
+CPU_CORE
debug.
+3VALW +2.5VS
+1.8VS
State +NVVDD
+PCIE
USB assignment:
USB-0 Right side
USB-1 Right side
USB-2 Left side(with ESATA)
S0 O O O O USB-3 Dock
USB-4 Camera
S1 O O O O USB-5 WLAN
USB-6 Bluetooth
S3 O O O X USB-7 Finger Printer
USB-8 MiniCard(WWAN/TV)
S5 S4/AC O O X X USB-9 Express card
USB-10 X
S5 S4/ Battery only O X X X USB-11 X
S5 S4/AC & Battery
don't exist X X X X PCIe assignment:
1 1
PCIe-1 TV tuner/WWAN/Robeson
PCIe-2 X
PCIe-3 WLAN
SMBUS Control Table
PCIe-4 GLAN (Marvell)
NB9M
SERIAL Thermal PCIe-5 Card reader
SOURCE INVERTER BATT EEPROM Sensor SODIMM CLK CHIP MINI CARD Sensor board Thermal NB9M G-sensor
Sensor PCIe-6 New Card
SMB_EC_CK1
SMB_EC_DA1
KB926 X V V X X X X V X X X
SMB_EC_CK2
SMB_EC_DA2
KB926 X X X V X X X X V V X
ICH_SMBCLK
ICH_SMBDATA
ICH9 X X X X V V V X X X V
www.kythuatvitinh.com
NB9M SMBUS Control Table
SOURCE LVDS CRT HDMI
DDC2_DATA
DDC2_CLK NB9M
V X X
3VDDCDA
3VDDCCL
NB9M X V X
HDMIDAT_VGA
HDMICLK_VGA
NB9M X X V
I2C / SMBUS ADDRESSING
DEVICE HEX ADDRESS
DDR SO-DIMM 0 A0 10100000 Security Classification Compal Secret Data Compal Electronics, Inc.
Issued Date 2008/02/25 Deciphered Date 2008/02/25 Title
DDR SO-DIMM 1 A4 10100100
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
Notes List
CLOCK GENERATOR (EXT.) D2 11010010 AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
Size Document Number Rev
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS Custom LA-4102P Blade discrete 0.4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Date: Monday, February 25, 2008 Sheet 3 of 53
A
5 4 3 2 1
50mA
Finger printer
50mA
PC Camera
177mA
ICH9 25mA +3VS_DVDD
1A ALC268
D
+V_BATTERY Dock con D
300mA 35mA
LAN MDC 1.5
60mA 1A
+3VAUX_BT New card
1A
0.3A 20mA Mini card (WLAN)
INVPWR_B+ LVDS CON +3VALW_EC
10mA 278mA
AC VIN SPI ROM ICH9
1.7A 5.89A 5.39A
+3VALW +3VS 1.5A
2A 550mA +LCDVDD LVDS CON
B++ JMB385
250mA
+3VS_CK505
C
657mA ICH_VCC1_5 C
ICH9 390mA
0.3A 2.2A NB9M (VGA)
+1.5VS 1.56A
ICH9
1A
Mini card (TV tu/WWAN/Robeson)
35mA +VDDA
0.58A 1.3A
+5VALW +5VS IDT 9271B7
B+
7A
10mA
+5VAMP
360mA
NB9M (VGA) 1.8A
ODD
B B
3.7 X 3=11.1V 3.7A 700mA
MCH SATA
DC BATT
1.9A 12.11A 8 A 1.8A
B+++ +1.8V DDR2 800Mhz 4G x2 Muti Bay
www.kythuatvitinh.com
50mA
+0.9V
1.17A
ICH9
4.7A
1.26A
+VCCP MCH
2.3A
CPU
2A 10mA 34A/1.025V
CPU_B+ +VCC_CORE CPU
A A
2.725A
0.27A
+NVVDDP +NVVDD NB9M (VGA)
2A/1.1V Security Classification Compal Secret Data Compal Electronics, Inc.
0.19A 2008/02/25 2008/02/25 Title
+1.1V_PCIE +PCIE NB9M (VGA) Issued Date Deciphered Date
Power delivery
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
Size Document Number Rev
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS C LA-4102P Blade discrete 0.4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Date: Monday, February 25, 2008 Sheet 4 of 53
5 4 3 2 1
A
1 1
www.kythuatvitinh.com
Security Classification Compal Secret Data Compal Electronics, Inc.
Issued Date 2008/02/25 Deciphered Date 2008/02/25 Title
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
Power sequence
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
Size Document Number Rev
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS Custom LA-4102P Blade discrete 0.4
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Date: Monday, February 25, 2008 Sheet 5 of 53
A
5 4 3 2 1
+3VS
#PV follow check list ver:1.5 change to 51 ohm
@ R1
ITP-XDP Connector XDP_DBRESET#_R 1 2 1K_0402_5%
Change value in 5/02 +VCCP
JP1 XDP_TDI R2 1 2 51_0402_1%
1 GND0 GND1 2
XDP_BPM#5 3 4 XDP_TMS R3 1 2 51_0402_1%
D XDP_BPM#4 OBSFN_A0 OBSFN_C0 D
5 OBSFN_A1 OBSFN_C1 6
7 8 XDP_TDO R4 1 2 51_0402_1%
XDP_BPM#3 GND2 GND3
9 OBSDATA_A0 OBSDATA_C0 10
XDP_BPM#2 11 12 XDP_BPM#5 R5 1 2 51_0402_1%
OBSDATA_A1 OBSDATA_C1
13 GND4 GND5 14
XDP_BPM#1 15 16 XDP_HOOK1 R6 1 2 @ 54.9_0402_1%
XDP_BPM#0 OBSDATA_A2 OBSDATA_C2
17 OBSDATA_A3 OBSDATA_C3 18
19 20 XDP_TRST# R7 1 2 51_0402_1%
9 H_A#[3..16] GND6 GND7
JCPU1A 21 22
H_A#3 H_ADS# OBSFN_B0 OBSFN_D0 XDP_TCK R8 51_0402_1%
J4 A[3]# ADS# H1 H_ADS# 9 23 OBSFN_B1 OBSFN_D1 24 1 2
ADDR GROUP_0
H_A#4 L5 E2 H_BNR# 25 26
A[4]# BNR# H_BNR# 9 GND8 GND9
H_A#5 L4 G5 H_BPRI# 27 28
A[5]# BPRI# H_BPRI# 9 OBSDATA_B0 OBSDATA_D0
H_A#6 K5 29 30 This shall place near CPU
H_A#7 A[6]# H_DEFER# OBSDATA_B1 OBSDATA_D1
M3 A[7]# DEFER# H5 H_DEFER# 9 31 GND10 GND11 32
H_A#8 N2 F21 H_DRDY# 33 34
A[8]# DRDY# H_DRDY# 9 OBSDATA_B2 OBSDATA_D2
H_A#9 J1 E1 H_DBSY# R9 35 36
A[9]# DBSY# H_DBSY# 9 OBSDATA_B3 OBSDATA_D3
H_A#10 N3 1K_0402_5% 37 38
H_A#11 A[10]# H_BR0# GND12 GND13
P5 A[11]# BR0# F1 H_BR0# 9 7,26 H_PWRGOOD 2 1H_PWRGOOD_R 39 PWRGOOD/HOOK0 ITPCLK/HOOK4 40 CLK_CPU_XDP CLK_CPU_XDP 17
H_A#12 P2 XDP_HOOK1 41 42 CLK_CPU_XDP# CLK_CPU_XDP# 17
A[12]# HOOK1 ITPCLK#/HOOK5
CONTROL
H_A#13 L2 D20 H_IERR# T1 +VCCP 43 44 +VCCP
H_A#14 A[13]# IERR# H_INIT# @ VCC_OBS_AB VCC_OBS_CD H_RESET#_R R10
P4 A[14]# INIT# B3 H_INIT# 26 2 1 45 HOOK2 RESET#/HOOK6 46 1 2 1K_0402_1% H_RESET#
H_A#15 P1 Place TP with a C1 0.1U_0402_16V4Z 47 48 XDP_DBRESET#_R R11 2 1 0_0402_1% XDP_DBRESET#
H_A#16 A[15]# H_LOCK# HOOK3 DBR#/HOOK7
R1 A[16]# LOCK# H4 H_LOCK# 9 GND 0.1" away 49 GND14 GND15 50
H_ADSTB#0 M1 51 52 XDP_TDO
9 H_ADSTB#0 ADSTB[0]# SDA TD0
C1 H_RESET# Removed at 5/30.(Follow 53 54 XDP_TRST#
RESET# H_RESET# 9 SCL TRST#
H_REQ#0 K3 F3 H_RS#0 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
