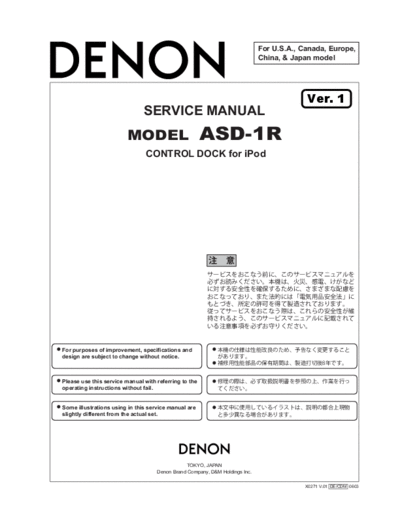

Image preview - the first page of the document
>> Download DENON ASD-1R+ALL_SM_V01+audio documenatation <<
Text preview - extract from the document
For U.S.A., Canada, Europe,
China, & Japan model
Ver. 1
SERVICE MANUAL
MODEL ASD-1R
CONTROL DOCK for iPod
For purposes of improvement, specifications and
design are subject to change without notice.
Please use this service manual with referring to the
operating instructions without fail.
Some illustrations using in this service manual are
slightly different from the actual set.
TOKYO, JAPAN
Denon Brand Company, D&M Holdings Inc.
X0271 V.01 DE/CDM 0603
ASD-1R
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power
cord is less than 460 kohms, the unit is defective.
CAUTION Please heed the points listed below during servicing and inspection.
Heed the cautions! Inspect for safety after servicing!
Spots requiring particular attention when servicing, such as Check that all screws, parts and wires removed or discon-
the cabinet, parts, chassis, etc., have cautions indicated on nected for servicing have been put back in their original posi-
labels or seals. Be sure to heed these cautions and the cau- tions, inspect that no parts around the area that has been
tions indicated in the handling instructions. serviced have been negatively affected, conduct an insulation
check on the external metal connectors and between the
Caution concerning electric shock! blades of the power plug, and otherwise check that safety is
ensured.
(1) An AC voltage is impressed on this set, so touching inter-
nal metal parts when the set is energized could cause
(Insulation check procedure)
electric shock. Take care to avoid electric shock, by for ex-
Unplug the power cord from the power outlet, disconnect the
ample using an isolating transformer and gloves when
antenna, plugs, etc., and turn the power switch on. Using a
servicing while the set is energized, unplugging the power
500V insulation resistance tester, check that the insulation re-
cord when replacing parts, etc.
sistance between the terminals of the power plug and the ex-
(2)There are high voltage parts inside. Handle with extra care ternally exposed metal parts (antenna terminal, headphones
when the set is energized. terminal, microphone terminal, input terminal, etc.) is 1M or
greater. If it is less, the set must be inspected and repaired.
Caution concerning disassembly and assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are moved CAUTION Concerning important safety parts
across them. Use gloves to protect your hands.
Many of the electric and structural parts used in the set have
Only use designated parts! special safety properties. In most cases these properties are
difficult to distinguish by sight, and using replacement parts
The set's parts have specific safety properties (fire resis- with higher ratings (rated power and withstand voltage) does
tance, voltage resistance, etc.). For replacement parts, be not necessarily guarantee that safety performance will be pre-
sure to use parts which have the same properties. In particu- served. Parts with safety properties are indicated as shown
lar, for the important safety parts that are marked ! on wiring below on the wiring diagrams and parts lists is this service
diagrams and parts lists, be sure to use the designated parts. manual. Be sure to replace them with parts with the designat-
ed part number.
Be sure to mount parts and arrange the
wires as they were originally! (1) Schematic diagrams ... Indicated by the ! mark.
For safety reasons, some parts use tape, tubes or other insu- (2) Parts lists ... Indicated by the ! mark.
lating materials, and some parts are mounted away from the
Using parts other than the designated parts
surface of printed circuit boards. Care is also taken with the
could result in electric shock, fires or other
positions of the wires inside and clamps are used to keep
dangerous situations.
wires away from heating and high voltage parts, so be sure to
set everything back as it was originally.
2
ASD-1R
PRINTED WIRING BOARD
COMPONENT SIDE FOIL SIDE
3
ASD-1R
EXPLODED VIEW & PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Part indicated with the mark "nsp" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
E3: U.S.A. & Canada model E2: Europe model E1C: China mode JP: Japan modell
Ref. No. nsp Part No. Part Name Remarks Q'ty New
1 - CARD WARRANTY for E3 5777001610034S 1
1 - CARD SVC STATION LIST for JP 5777200040018S 1
2 - CARD SS LIST for E3, E2, E1C 5777001620019S 1
3 00D 963 0281 009 INSTRUCTION MANUAL for E3, E2, E1C 5707000000010S 1 *
3 00D 963 0281 106 INSTRUCTION MANUAL for JP 5707000000020S 1 *
4 - POLY BACK MANUAL 6377000240010S 1
5 - CUSHION SNOW 6230211434000S 1
6 - POLY BAG ADAPTER 6330210252000S 5
7 00D 963 0282 406 ADAPTER IPOD-3 for iPod mini 4720210001000S 1 *
8 00D 963 0282 503 ADAPTER IPOD-4 for 4G iPod 20GB 4720210011000S 1 *
4
ASD-1R
Ref. No. nsp Part No. Part Name Remarks Q'ty New
9 00D 963 0282 600 ADAPTER IPOD-5 for 4G iPod 30/40GB 4720210021000S 1 *
10 00D 963 0282 707 ADAPTER IPOD-6 for iPod Photo 30GB 4720210031000S 1 *
11 00D 963 0282 804 ADAPTER IPOD-7 for iPod Photo 60GB 4720210041000S 1 *
! 12 00D 963 0282 901 ADAPTER AC-DC for E3, JP White model M080122120020S 1 *
! 12 00D 963 0281 708 ADAPTER AC-DC for E3, JP Black model M080122120060S 1 *
! 12 00D 963 0283 007 ADAPTER AC-DC for E2 White model M080122120010S 1 *
! 12 00D 963 0281 805 ADAPTER AC-DC for E2 Black model M080122120050S 1 *
! 12 00D 963 0283 201 ADAPTER AC-DC for E1C White model M080122120030S 1 *
! 12 00D 963 0282 008 ADAPTER AC-DC for E1C Black model M080122120070S 1 *
13 00D 963 0283 308 CORD RCA for E3, E2, E1C White model L063420200000S 1 *
13 00D 963 0282 105 CORD RCA for E3, E2, E1C Black model L063420200010S 1 *
13 00D 963 0283 405 CORD RCA for JP White model L063320200000S 1 *
13 00D 963 0282 202 CORD RCA for JP Black model L063320200010S 1 *
15 00D 963 0283 706 CORD MINI PLUG for White model L063110200010S 1 *
15 00D 963 0283 609 CORD MINI PLUG for Black model L063110200020S 1 *
16 - BOX GIFT for E3, E2, E1C White model 6007210860000S 1
16 - BOX GIFT for E3, E2, E1C Black model 6007210860010S 1
16 - BOX GIFT for JP White model 6007210860020S 1
16 - BOX GIFT for JP Black model 6007210860030S 1
17 00D 963 0283 502 CORD DIN for JP White model L062202040000S 1 *
17 00D 963 0282 309 CORD DIN for JP Black model L062202040010S 1 *
18 - CARD GUARANTEE for JP 5777200020014S 1
5
ASD-1R
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts marked with this symbol ! have critical characteristics.
Use ONLY replacement parts recommended by the manufactur-
er.
CAUTION:
