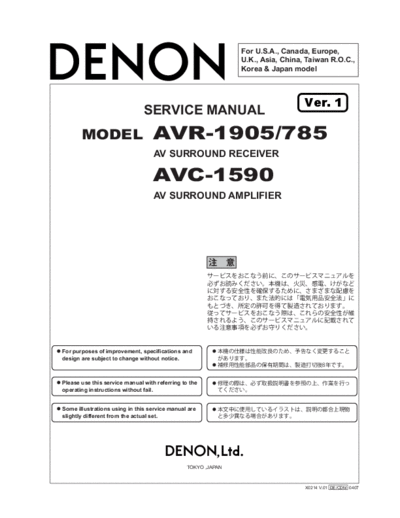

Image preview - the first page of the document



>> Download AVR1905_785_SM (1) documenatation <<

Text preview - extract from the document

                                                              For U.S.A., Canada, Europe,
                                                              U.K., Asia, China, Taiwan R.O.C.,
                                                              Korea & Japan model



                                                                                Ver. 1
                               SERVICE MANUAL
       MODEL                       AVR-1905/785
                                   AV SURROUND RECEIVER

                                   AVC-1590
                                   AV SURROUND AMPLIFIER




For purposes of improvement, specifications and
design are subject to change without notice.



Please use this service manual with referring to the
operating instructions without fail.


Some illustrations using in this service manual are
slightly different from the actual set.




                                               TOKYO ,JAPAN



                                                                                X0214 V.01 DE/CDM 0407
                                                                                              AVR-1905/785 AVC-1590




SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.




                                                                        500V


                                                                                            1M


(1)




(2)




                                                                 (1)

                                                                 (2)




                                                           2
                AVR-1905/785 AVC-1590


DIMENSION




            3
                                                                            AVR-1905/785 AVC-1590


CAUTION IN SERVICING
Initializing AV SURROUND RECEIVER
AV SURROUND RECEIVER initialization should be performed
when the
