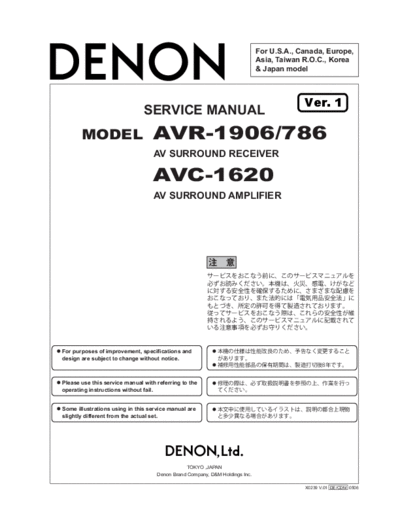

Image preview - the first page of the document



>> Download AVC-1620 AVR-1906 786 documenatation <<

Text preview - extract from the document

                                                                             For U.S.A., Canada, Europe,
                                                                             Asia, Taiwan R.O.C., Korea
                                                                             & Japan model



                                                                                          Ver. 1
                               SERVICE MANUAL
       MODEL                       AVR-1906/786
                                   AV SURROUND RECEIVER

                                   AVC-1620
                                   AV SURROUND AMPLIFIER




For purposes of improvement, specifications and
design are subject to change without notice.



Please use this service manual with referring to the
operating instructions without fail.


Some illustrations using in this service manual are
slightly different from the actual set.




                                               TOKYO ,JAPAN
                                    Denon Brand Company, D&M Holdings Inc.

                                                                                          X0239 V.01 DE/CDM 0506
                                                                                     AVR-1906 / AVR-786 / AVC-1620




SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.




                                                                        500V


                                                                                            1M


(1)




(2)




                                                                 (1)

                                                                 (2)




                                                           2
                AVR-1906 / AVR-786 / AVC-1620


DIMENSION




            3
                                                                            AVR-1906 / AVR-786 / AVC-1620


CAUTION IN SERVICING
Initializing AV SURROUND RECEIVER
AV SURROUND RECEIVER initialization should be performed
when the
