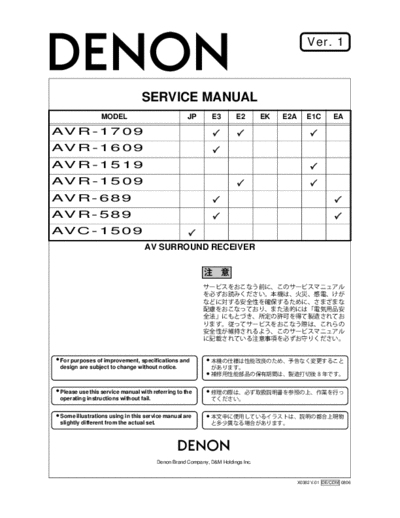

Image preview - the first page of the document
>> Download hfe_denon_avr-589_689_1509_1519_1609_1709_avc-1509_service_en documenatation <<
Text preview - extract from the document
Ver. 1
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C EA
AVR-1709
AVR-1609
AVR-1519
AVR-1509
AVR-689
AVR-589
AVC-1509
AV SURROUND RECEIVER
For purposes of improvement, specifications and
design are subject to change without notice.
Please use this service manual with referring to the
operating instructions without fail.
Some illustrations using in this service manual are
slightly different from the actual set.
e
Denon Brand Company, D&M Holdings lnc.
X0382 V.01 DE/CDM 0806
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
CAUTION Please heed the points listed below during servicing and inspection.
Heed the cautions! Inspect for safety after servicing!
Spots requiring particular attention when servicing, such Check that all screws, parts and wires removed or discon-
as the cabinet, parts, chassis, etc., have cautions indicated nected for servicing have been put back in their original po-
on labels or seals. Be sure to heed these cautions and the sitions, inspect that no parts around the area that has been
cautions indicated in the handling instructions. serviced have been negatively affected, conduct an insu-
lation check on the external metal connectors and between
Caution concerning electric shock! the blades of the power plug, and otherwise check that
safety is ensured.
(1) An AC voltage is impressed on this set, so touching in-
ternal metal parts when the set is energized could
(Insulation check procedure)
cause electric shock. Take care to avoid electric shock,
Unplug the power cord from the power outlet, disconnect
by for example using an isolating transformer and
the antenna, plugs, etc., and turn the power switch on. Us-
gloves when servicing while the set is energized, un-
ing a 500V insulation resistance tester, check that the in-
plugging the power cord when replacing parts, etc.
sulation resistance between the terminals of the power
(2)There are high voltage parts inside. Handle with extra plug and the externally exposed metal parts (antenna ter-
care when the set is energized. minal, headphones terminal, microphone terminal, input
terminal, etc.) is 1M or greater. If it is less, the set must
Caution concerning disassembly and be inspected and repaired.
assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
CAUTION Concerning important safety
edges of parts which could cause injury if fingers are
moved across them. Use gloves to protect your hands.
parts
Only use designated parts! Many of the electric and structural parts used in the set
have special safety properties. In most cases these prop-
The set's parts have specific safety properties (fire resis- erties are difficult to distinguish by sight, and using re-
tance, voltage resistance, etc.). For replacement parts, be placement parts with higher ratings (rated power and
sure to use parts which have the same properties. In par- withstand voltage) does not necessarily guarantee that
ticular, for the important safety parts that are marked z on safety performance will be preserved. Parts with safety
wiring diagrams and parts lists, be sure to use the desig- properties are indicated as shown below on the wiring dia-
nated parts. grams and parts lists is this service manual. Be sure to re-
place them with parts with the designated part number.
Be sure to mount parts and arrange
the wires as they were originally! (1) Schematic diagrams ... Indicated by the z mark.
For safety reasons, some parts use tape, tubes or other in- (2) Parts lists ... Indicated by the z mark.
sulating materials, and some parts are mounted away from
Using parts other than the designated
the surface of printed circuit boards. Care is also taken with
parts could result in electric shock, fires or
the positions of the wires inside and clamps are used to
other dangerous situations.
keep wires away from heating and high voltage parts, so
be sure to set everything back as it was originally.
2
AVR-1709/1609/1519/1509/689/589, AVC-1509
z
z
z
3
AVR-1709/1609/1519/1509/689/589, AVC-1509
DIMENSION
AVR-1709 model
4
AVR-1709/1609/1519/1509/689/589, AVC-1509
AVR-1609/1509/1519 model
5
AVR-1709/1609/1519/1509/689/589, AVC-1509
AVR-689 model
6
AVR-1709/1609/1519/1509/689/589, AVC-1509
AVR-589 model
7
AVR-1709/1609/1519/1509/689/589, AVC-1509
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or
parts replacement etc., be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.
Wire arrangement viewed from the top
Back Panel side
Front Panel side
8
AVR-1709/1609/1519/1509/689/589, AVC-1509
DISASSEMBLY
