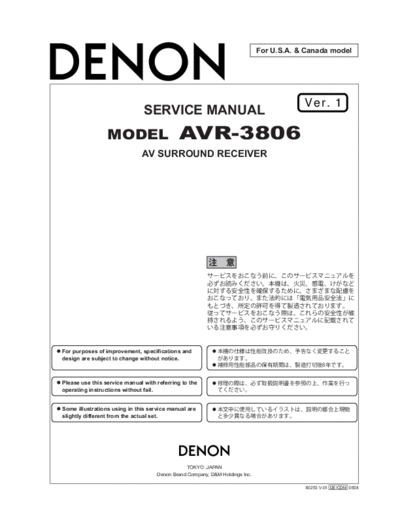

Image preview - the first page of the document



>> Download hfe_denon_avr-3806_service_en documenatation <<

Text preview - extract from the document

                                                                             For U.S.A. & Canada model




                                                                                         Ver. 1
                               SERVICE MANUAL
                 MODEL                       AVR-3806
                              AV SURROUND RECEIVER




For purposes of improvement, specifications and
design are subject to change without notice.



Please use this service manual with referring to the
operating instructions without fail.


Some illustrations using in this service manual are
slightly different from the actual set.




                                               TOKYO ,JAPAN
                                    Denon Brand Company, D&M Holdings Inc.

                                                                                         X0253 V.01 DE/CDM 0508
                                                                                                  AVR-3806 / AVC-3920




SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.




                                                                        500V


                                                                                            1M


(1)




(2)




                                                                 (1)

                                                                 (2)




                                                           2
                                          AVR-3806 / AVC-3920


DIMENSION




                                                    182.5
                              28.5
                          0
                                     15

 338.8


  318.1




 244.5




      0




   66.1


  88.2
                          0
          217




                172




                                              172




                                                            217




                      3
                                                                        AVR-3806 / AVC-3920


WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or
parts replacement etc.,be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.
Wire arrangement viewed from the top




                                                     Back Panel side




                                                     Front Panel side




                                                               4
                                                                            AVR-3806 / AVC-3920


CAUTION IN SERVICING
Initializing AV SURROUND RECEIVER
AV SURROUND RECEIVER initialization should be performed
when the
