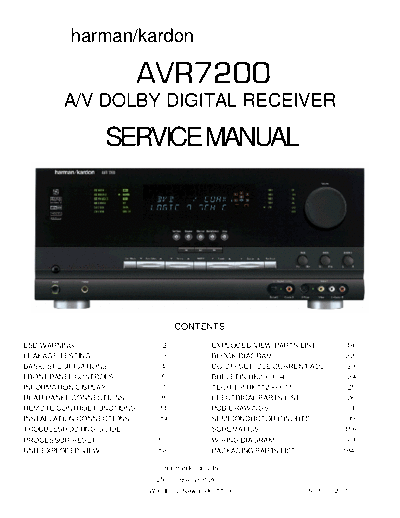

Image preview - the first page of the document

>> Download hfe_harman_kardon_avr7200_service documenatation <<

Text preview - extract from the document

harman/kardon

AVR7200
A/V DOLBY DIGITAL RECEIVER

SERVICE MANUAL

CONTENTS

ESD WARNING.....................................2 EXPLODED VIEW PARTS LIST.............19
LEAKAGE TESTING...............................3 BLOCK DIAGRAM...............................22
BASIC SPECIFICATIONS.......................4 DC OFFSET/IDLE CURRENT ADJ..........23
FRONT PANEL CONTROLS.....................5 BULLETIN HK2003-04...........................24
INFORMATION DISPLAY........................7 TECH TIP HKTT2003-01........................25
REAR PANEL CONNECTIONS................8 ELECTRICAL PARTS LIST....................26
REMOTE CONTROL FUNCTIONS..........11 PCB DRAWINGS.................................74
INSTALLATION/CONNECTIONS.............14 SEMICONDUCTOR PINOUTS................99
TROUBLESHOOTING GUIDE.................17 SCHEMATICS....................................158
PROCESSOR RESET..........................17 WIRING DIAGRAM.............................183
UNIT EXPLODED VIEW.........................18 PACKAGING PARTS LIST....................184

harman/kardon, Inc.
250 Crossways Park Dr.
Woodbury, New York 11797 Rev1 7/2005
AVR7200 harman/kardon

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and

semiconductor "chip" components.

The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on

your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to

prevent electrostatic charge build-up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges

sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement

ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the

chassis or circuit assembly into which the device will be installed.

CAUTION : Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together

or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.

Each precaution in this manual should be followed during servicing.

Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with

, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the

parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably

insulated from the supply circuit before retuming the product to the customer.

2
AVR7200 harman/kardon

Before returning the unit to the user, perform the following safety checks :

1. Inspect all lead dress to make certain that

leads are not pinched or that hardware is not

lodged between the chassis and other metal

parts in the unit.

2. Be sure that any protective devices such as

nonmetallic control knobs, insulating fish-

papers, cabinet backs, adjustment and

compartment covers or shields, isolation

resistor-capacity networks, mechanical

insulators, etc. Which were removed for the

servicing are properly re-installed.

3. Be sure that no shock hazard exists ; check for leakage

current using Simpson Model 229 Leakage Tester, standard

equipment item No. 21641, RCA Model WT540A or use

alternate method as follows : Plug the power cord directly

Into a 120 volt AC receptacle (do not use an Isolation

Transformer for this test). Using two clip leads, connect a

1500 ohms, 10watt Resistor paralleled by a 0.15uF capacitor, in series with all exposed metal cabinet parts and a known earth ground, such

as a water pipe or conduit. Use a VTVM or VOM with 1000 ohms per volt, or higher sensitivity to measure the AC voltage drop across the

resistor. (See diagram) Move the resistor connection to each exposed metal part having a return path to the chassis (antenna, metal,

cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor. (This test should be

performed with the 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before returning the

unit to the owner.

3
AVR7200 harman/kardon

AVR 7200 TECHNICAL SPECIFICATIONS

Audio Section AM Tuner Section
Stereo Mode Frequency Range 520
